930318102, Hirschmann Test & Measurement Crocodile Clip, Brass, Bronze Contact, 8A, Blue, Зажим

MA 1 CAT I Miniature Insulated Crocodile Clip, Crimp Contact

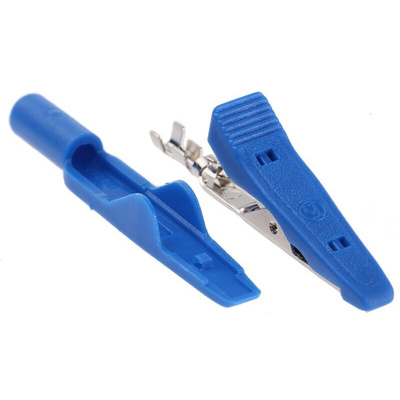

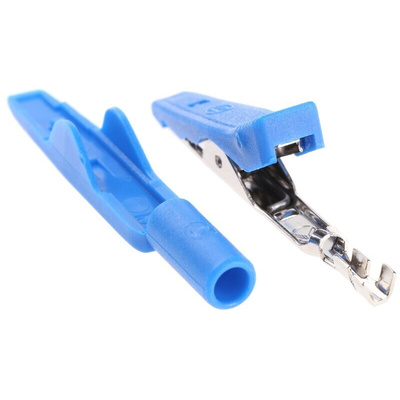

Hirschmann Test and Measurement MA 1 miniature insulated crocodile clip, features high strength insulation, crimp wire termination and nickel plated brass jaws. The flat portion of the jaws allows for a secure contact to be made when clamping even the thinnest of wires. These miniature crocodile clips are capable of clamping flat components and wires up to a maximum diameter of 4mm. Crimp connection termination is suitable for wires 0.25mm² to 0.5mm² .

Rated voltage 30 VAC/ 60 VDC
Rated Current 8A
CAT I
4mm maximum clamp diameter
Crimp termination

MA 1 Crimp_9303181xx
