932200100, Hirschmann Test & Measurement Black Male Banana Plug, 4 mm Connector, 32A, 1000V ac/dc, Nickel Plating

Hirschmann Test & Measurement Banana Plug

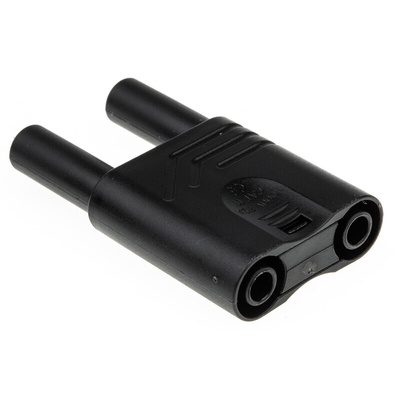

The Hirschmann Test & Measurement black banana plug is a male, safety insulated jumper socket with shatterproof insulated sleeve. The connector consists of spring-loaded plugs and unsprung sockets for onward connection capability. A contact bridge connects the sockets and plugs of the connector. It has a voltage rating of 1000VAC/DC with a current rating of 32A.

Features and Benefits

Nickel-plated copper beryllium contact
Unsprung socket termination
Spring-loaded pin contact
Contact resistance is 8mohm
Housing material PA
Length is 52.2mm

Applications

Electrical connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC61010
UL 94 V-2 (housing) approved
CE certified
CAT II (600 V AC/DC, CAT III) safety rated

KST S WS_9322001xx
