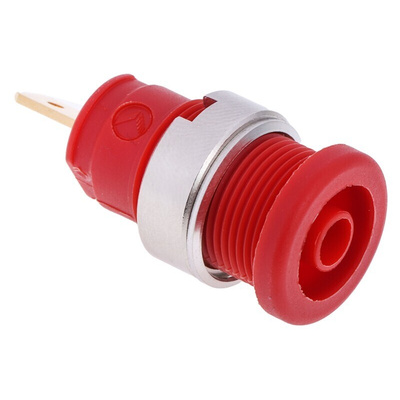

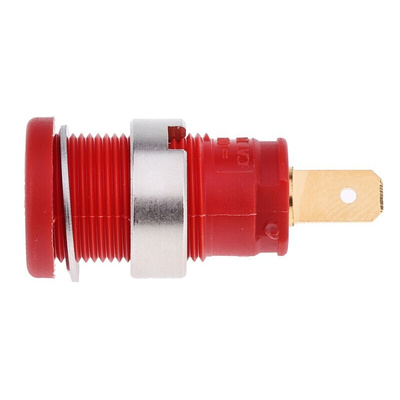

972355101, Hirschmann Test & Measurement Red Female Banana Socket, 4 mm Connector, Tab Termination, 25A, 1000V ac/dc, Gold Plating

Hirschmann Test & Measurement Safety Socket

The Hirschmann test & measurement red, female safety socket is a chassis mount touch protected test socket. It has M12 and 4.8mm x 0.8mm tab connection. These MW SEB 2610 F4.8, 4mm socket are ideal for installation in equipment chassis and switch panels with a wall thickness of to up 6mm, installation hole required are 12.2mm in diameter. It has a voltage rating of 1000VAC/DC and a current rating of 25A.

Features and Benefits

Gold-plated brass contact
ConnectioN-type is tab
Housing material is PA
Contact resistance is 5mohm
Tightening torque is 50N-cm
Length is 32mm

Applications

Electrical connections
Electronic connections

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
DIN 46 244
UL 94 V-2 approved
CAT III safety rated
IEC61010

SEB 2610 F4,8_9723551xx
