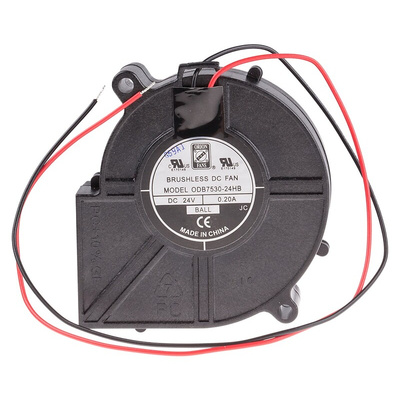

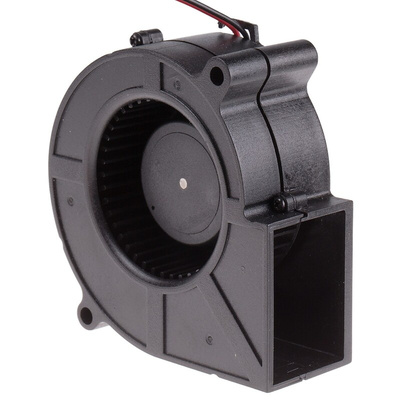

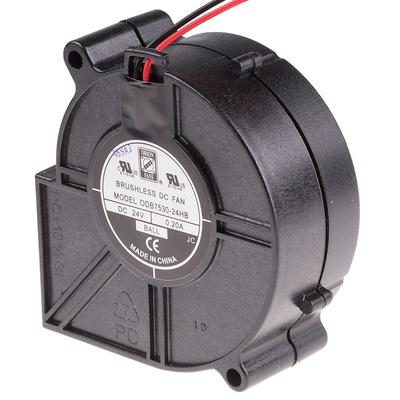

RS PRO Centrifugal Fan, 24 V dc, 10cfm, DC Operation, 75 x 75 x 30mm

RS PRO Centrifugal Fan, 75 x 75 x 30 mm, 10 CFM, 24 V DC

This RS PRO centrifugal fan or blower recirculates and conveys air. Use it in your air conditioners and air conveyor systems.
The polybutylene terephthalate (PBT) construction of the frame and impeller is safe to use as it won't ignite or act as a fuel source during fire outbreaks. You can easily wipe the fan clean as it's chemical and stain-resistant. Pre-drilled holes enable you to install the blower with minimal effort.
You can be assured this product contains only negligible amounts of any harmful materials as it's RoHS (Restriction of Hazardous Substances) certified. You can use it in HVAC (heating, ventilation and air conditioning) systems at your home or work setting.

Features and Benefits

• DC operation
• Airflow of 10 CFM (cubic feet per minute)
• Ball-bearing type
• Blower type
• Brushless commutation type
• Dimensions of 75 x 75 x 30 mm
• Forward direction of curve
• Fan speed of 3000 rpm (rotations per minute)
• Maximum current of 240 mA
• Mounting hole diameter of 4.5 mm
• Noise level of 38 dB(A)
• Tachometer and temperature sensor output type
• Static pressure of 0.35 in/H2O
• Supply voltage of 24 V DC
• Lead wire termination type

RS Pro Datasheet
