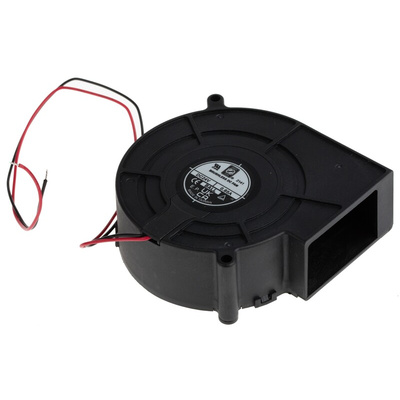

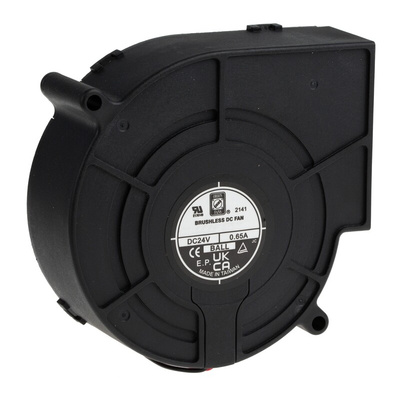

RS PRO Centrifugal Fan, 24 V dc, 33cfm, DC Operation

RS PRO Centrifugal Fan, 33 CFM, 24 V DC

Use this centrifugal fan or blower from RS PRO to recirculate and convey air. It's commonly used in air conditioners and air conveyor systems.


The frame and impeller are made of polybutylene terephthalate (PBT), which won't ignite in the event of a fire. As the fan is chemical and stain-resistant, it can be easily wiped clean. The blower is simple to install thanks to its pre-drilled holes.


This product is RoHS (Restriction of Hazardous Substances) compliant, meaning it contains only minimal amounts of any harmful materials. You'll commonly find it used in heating, ventilation and air conditioning (HVAC) systems in domestic and commercial environments.

Features and Benefits

• DC operation


• Airflow of 33 CFM (cubic feet per minute)


• Ball-bearing type


• Blower type


• Brushless commutation type


• Height of 95.87 mm


• Depth of 33 mm


• Forward direction of curve


• Fan speed of 4000 rpm (rotations per minute)


• Maximum current of 780 mA


• Mounting hole diameter of 4.5 mm


• Noise level of 56 dB(A)


• Tachometer and temperature sensor output type


• Static pressure of 1.1 in/H2O


• Supply voltage of 24 V DC


• Lead wire termination type
