1119304, Lapp ÖLFLEX CLASSIC 110 Control Cable, 4 Cores, 1.5 mm², YY, Unscreened, 100m, Grey PVC Sheath, 16 AWG, Кабель

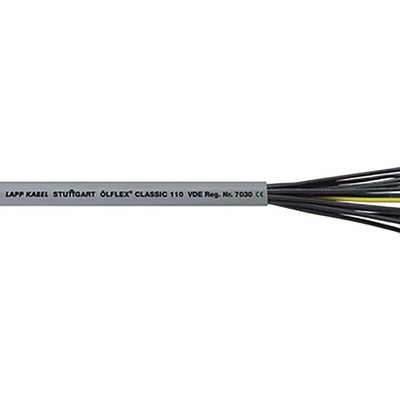

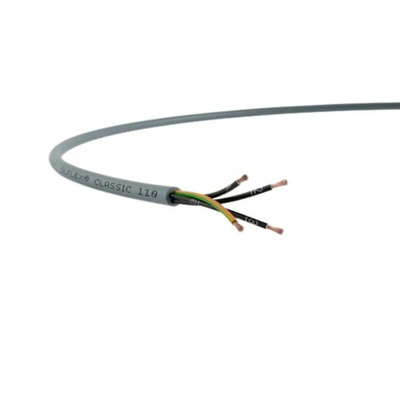

LAPP Control Cable, 16AWG, 100m Length - ÖLFLEX CLASSIC 110 Series - 1119304

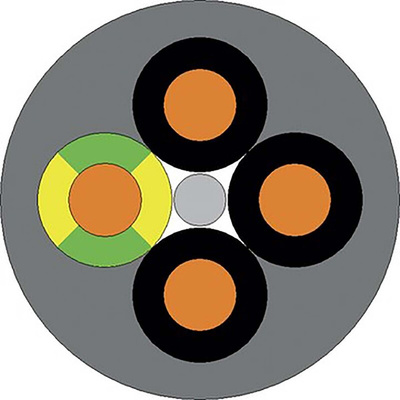

Link your control and instrumentation devices together with this flexible cable from LAPP. It's a 4-core option with conductors made of bare copper, so it delivers a reliable connection. As a YY cable, both its outer sheath and insulation are made of durable PVC (polyvinyl chloride), which is resistant to abrasion and impact. This material can also withstand chemicals and oils, so it's suitable for use in harsh environments. For electrical safety, the cable includes an integrated earth wire that provides a channel for fault current to flow to the ground. This effectively prevents electric shock so you can rest assured you're in safe hands.

Features & Benefits

• Non-wicking filler for acid and moisture resistance
• Broad operating temperature range of -40°C to +80°C for use harsh environments
• Minimum bend radius of 15 times its diameter offers flexibility for installation around corners
• Cable length of 100m, so you get plenty for several projects

Applications

• Building and construction industry
• Plant engineering
• Machine tools

What's the maximum voltage rating for this cable?

The maximum voltage rating for this cable is 500V (volts), so it's suitable for low-voltage applications.

Standards

VDE 0295, Part 5

Datasheet

Cable Selection Guide
