1119303, Lapp ÖLFLEX CLASSIC 110 Control Cable, 3 Cores, 1.5 mm², YY, Unscreened, 100m, Grey PVC Sheath, 16 AWG, Кабель

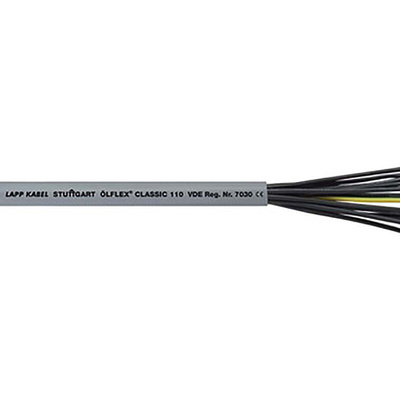

Ölflex® Classic 110 YY Cable

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

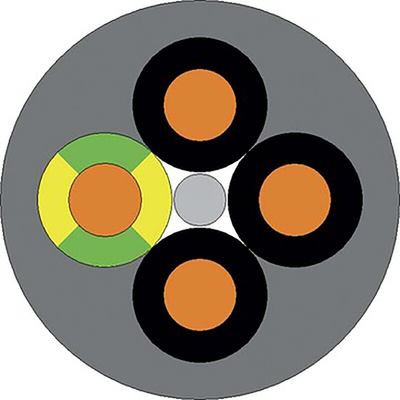

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Grey Control Cable, 100m Length, 3 Cores - ÖLFLEX Series - 1119303

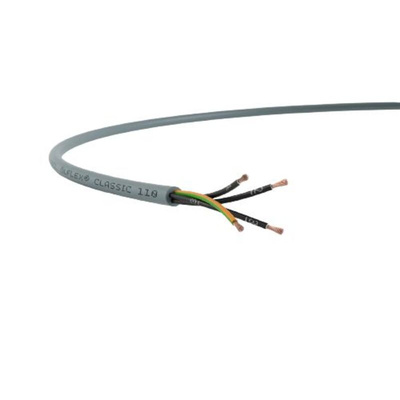

Use this YY control cable from LAPP to keep your data connections secure. Featuring three unscreened stranded conductor cores, it easily flexes to the space in your application without losing conductivity. Thanks to a non-wicking filler material that repels external moisture, you can be sure of minimal risk of damage to your cabling in damp or humid surroundings. User-friendly numbered conductor cores make installation and maintenance straightforward, even in busy systems.

Features & Benefits

• Heavy-duty PVC sheath is flame-retardant and oil-resistant to protect against spillages and limited fire exposure
• Versatile 300/500V voltage rating supports most commercial and light-industrial applications
• Operating temperature range of -40°C to +80°C for use in harsh environments

Applications

• Industrial equipment engineering
• Automotive industry
• Control and automation

What's screening and should I use an unscreened cable in my application?

Screened cables contain an extra layer of protection to shield the internal conductors against electromagnetic interference. Unscreened cables like this one don't have this extra layer, giving them greater flexibility than screened alternatives. An unscreened cable is suitable in instances where EMI is either not an issue or is already managed by external shielding.

Standards

VDE 0295, Part 5
