1119207, Lapp ÖLFLEX CLASSIC 110 Control Cable, 7 Cores, 1 mm², YY, Unscreened, 100m, Grey PVC Sheath, 17 AWG, Кабель

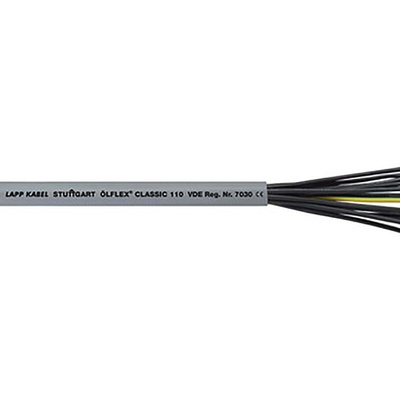

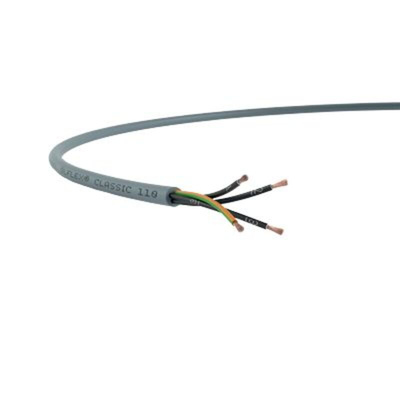

Ölflex® Classic 110 YY Cable

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

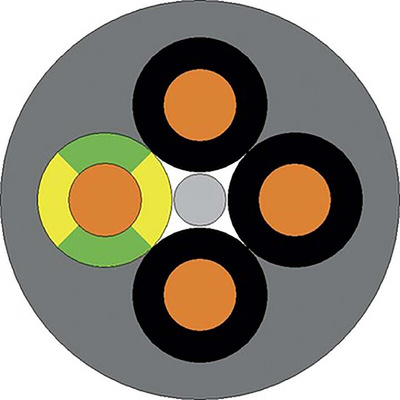

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

Standards

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

LAPP Control Cable, Non-Wicking Filler, 15A Current Rating - ÖLFLEX CLASSIC 110 Series - 1119207

Bridge the gap between your electronic devices with this control cable from LAPP. Thanks to its highly conductive copper wires, you can be sure of reliable power and signal delivery to your system. This cable is 100m in length, giving you sufficient stock to cut it down for use in multiple systems. As the PVC sheath is resistant to chemicals and oils, this cable holds its own in challenging environments.

Features & Benefits

• Non-wicking filler helps prevent moisture absorption for electrical safety
• Current rating of 15A for use in high-power systems
• Flame-retardant for safety in the event of a fire

Applications

• Electrical engineering
• Telecommunications
• Robotics
• Computer equipment

How flexible is this cable?

This cable has a minimum bending radius that's four times its diameter in fixed installations and ten times its diameter in flexible installations, giving you plenty of freedom to route it around corners.

Standards

VDE 0295, Part 5
