01550320ZXU, Littelfuse ATO Series 20A Panel Mount Fuse Holder for ATO Fuse, Держатель предохранителя

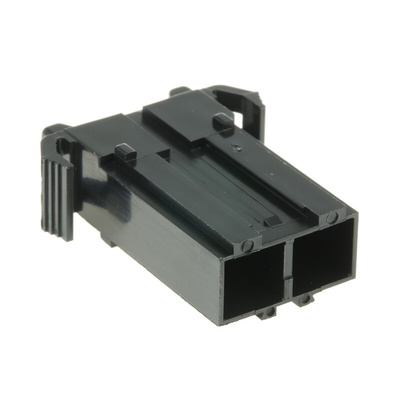

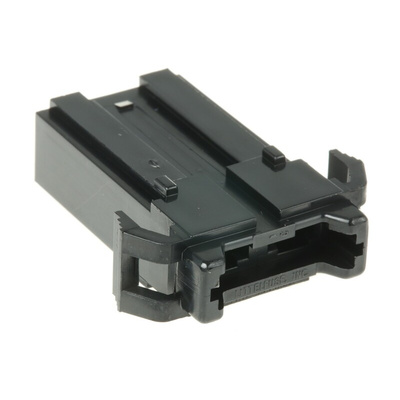

Littelfuse 155 Series In-Line Fuseholders - ATO Fuses

From Littelfuse, a range of in-line fuse holders designed for panel mounting. The 155 series of fuse holders are versatile, they can be used singular or inter-locked together for multiple mounting. Fitting is easy, once the desired cut-out is made the fuse holder is simply pushed into the aperture and is securely retained with the top and bottom sprung loaded tabs.

Manufactured from high-grade thermoplastic materials the 155 series of panel mount fuse holders are robust and reliable. With their simple design, they require no specialist tooling to fit. Supplied unassembled with tin-plated brass terminals that snap-lock into the fuse body. The 155 series of fuse holders are suitable for maintenance, repair, and new designs.

Features and Benefits

• Robust and reliable
• Compact design
• Black thermoplastic body UL94 V2
• Easy snap-mounting into the panel
• Fuse holders interlock for multiple mounting
• Terminals designed for 14 AWG stranded cable or wire
• 20 amps maximum
• 32 volts maximum
• Wide ambient temperature range – 40° C to + 85°C
• Suitable for ATO style automotive fuses

Applications

ATO fuses and their holders are used to protect a circuits cabling from the excessive current that could lead to damage or electrical fire. ATO blade fuse holders are used in a wide range of automotive electrical applications. Some of the most common are

• Vehicle wiring looms
• Automotive circuits
• Motorbikes
• Agricultural machinery

Stackable Panel Mount Fuse Holder Data Sheet
