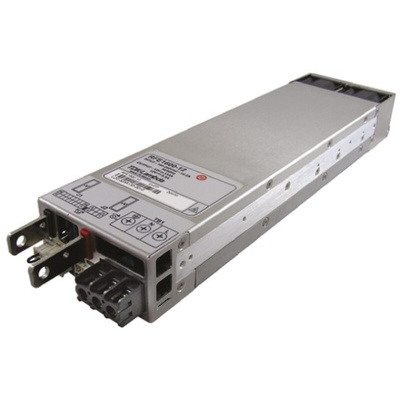

TDK-Lambda Switching Power Supply, RFE1600-24, 24V dc, 67A, 1608W, 1 Output, 85 → 265V ac Input Voltage, Блок питания

TDK Lambda RFE1600 Series, 1600W Universal Input, Single Output, 1U Front End

The TDK Lambda RFE1600 Series is a 1600W single output AC-DC power supply in a low profile package for stand alone or distributed power architectures (DPA). The output voltage is user adjustable enabling the RFE1600 to be used in a variety of applications. The RFE1600 has an efficiency of up to 92% and it minimizes wasted heat dissipation and system cooling issues. These Front end power supplies feature a universal input of 85 to 265VAC with PFC. Each power supply has two variable speed cooling fans and the supplies can operate in temperatures ranging from -10°C to +70°C. The RFE1600 features overvoltage, overcurrent and overtemperature protection. Remote On/Off control is standard as is an auxiliary 12V/0.5A output. These Front end power supplies are intended for applications requiring reliable 12V, 24V or 48VDC bulk power, typical applications for the RFE1600 include communications, factory automation, test & measurement, robotics and broadcast/RF amplifiers.

Low profile package fits 1U applications
Power factor correction to EN61000-3-2 - PF>0.98 at full load
High efficiency
Internal OR-ing diodes
Current share
Over current, over voltage and over temperature protection

Standards

UL 60950-1, EN 60950-1

Approvals

UL, CSA
