704.064.2, EAO Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, IP65, Кнопочный переключатель

EAO 04 Series Stop Switch and Accessories

From EAO, the 04 Series of Twist release stop-switches are designed to prevent "teasing" of the actuator which can result in premature contact operation. The design also eliminates the possibility of the push button action being blocked by lodged foreign bodies. The actuator requires a contact block to complete the switch, see stock no 7874729. For a suitable protective shroud see stock no 7874722.

• 22.5mm panel cut out diameter
• Arrow markings on button face
• Front protection IP65

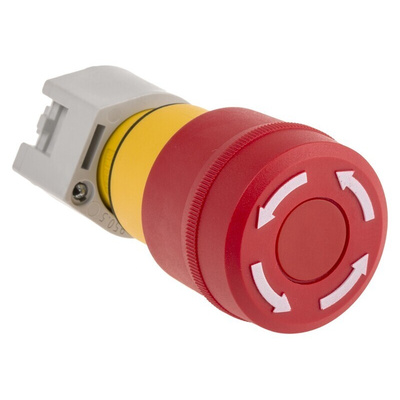

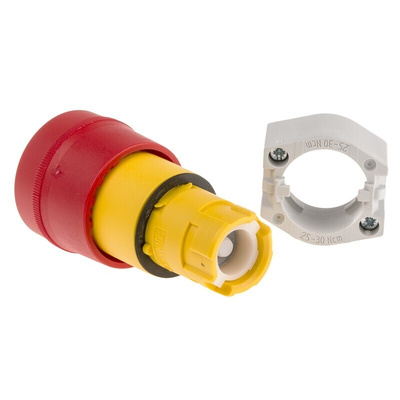

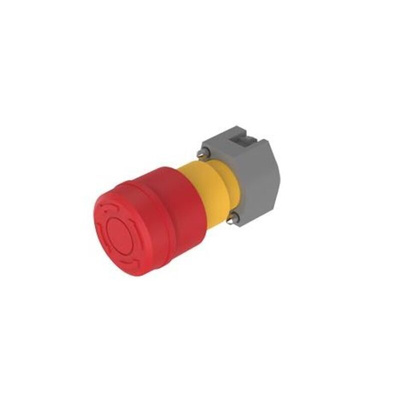

EAO Emergency Stop Push Button, 37mm Front Diameter, Maintained Switching Action - 04 Series - 704.064.2

Looking for a reliable safety device to shut down your equipment in case of an emergency? Choose this emergency stop push button from EAO. It fits into a cutout with a compact diameter of 22.3mm, so it will take up minimal space on your panel. As it's a maintained switch, it will keep your machinery off until you return it to its original position by twisting it. Its bright red and yellow colour makes it easy to spot on a crowded panel.

Features & Benefits

• IP65 rating means it's dust-tight and protected against low-pressure water jets
• Accommodates up to three switching elements for versatility
• Light weight of 300g to place minimal strain on your equipment
• Screw terminals for simple and secure installation
• Raised, mushroom-shaped head makes it easy to press for quick activation

Applications

• Manufacturing industry
• Construction equipment
• Medical machinery

What material is this push button made of?

This push button's lens is made of plastic, so it's resistant to impact and wear for durability in harsh industrial environments.

Datasheet
