84-909, EAO Shroud, For Use With Stop Switches, Кожух

Series 84 Low Profile Emergency Stop Switch

The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.
Within the many different colours, the lenses are available either in plastic or anodised aluminium.
To meet modern assembly standards, this range is connected to PCBs.
The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.
The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.
The range requires no additional assembly because of its ’monoblock’design.
The double-break switching system can be supplied for the following switching functions:
•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics

New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.
The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions

Operating temperature
-25°C … +65°C
Storage temperature
-25°C … +80°C
The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.
They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.
The numbers that follow IP each have a specific meaning and they represent the following:
•First Digit (intrusion protection)
•Second Digit (moisture protection)

Approvals

Approbations
UL (Underwriters Laboratories), is a world leader in product safety testing and certification
SEV (Swiss Designation)

Standards

DIN EN ISO 13850

Approvals

UL Recognised

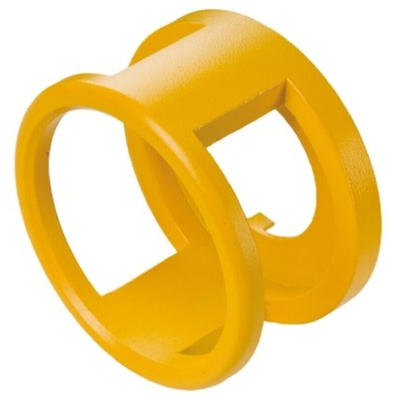

EAO Shroud, Metal Material, 22.5mm Cutout Diameter - 84 Series - 84-909

Prevent your stop switch from throwing a spanner in the works with this shroud from EAO. It helps to keep your push button under wraps, so there's minimal chance of it being accidentally pushed and unnecessarily halting equipment. The shroud's robust metal construction is resistant to impact and corrosion, so it's just what you need to protect your device in harsh environments. A bright yellow colour makes the unit stand out, so you can spot your push button in a flash.

• IP40 rating means it's protected against small tools and wires larger than 1mm in size
• Light weight of 0.021kg to place minimal strain on your machine panel
• Includes an anti-twisting device to prevent accidental movement

Applications

• Ticketing machines
• Measurement and control engineering
• Process automation
• Lifting and handling equipment

What push buttons can I use with this shroud?

This shroud is compatible with pushbuttons from EAO's 82 series. These emergency stop switches are suitable for industrial use and have a lifespan of up to 50,000 operations for an extended service life in demanding settings.
