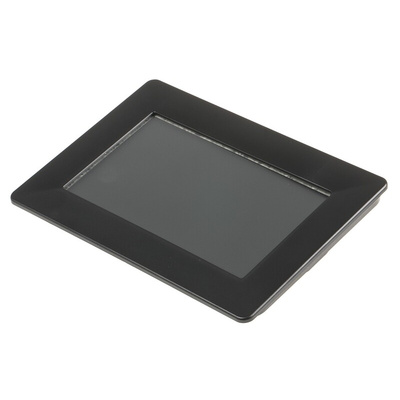

Bridgetek VM800B43A-BK, FT800 Basic EVE 4.3in Resistive Touch Screen Evaluation Module With Black Bezel

Bridgetek Screen Evaluation Module

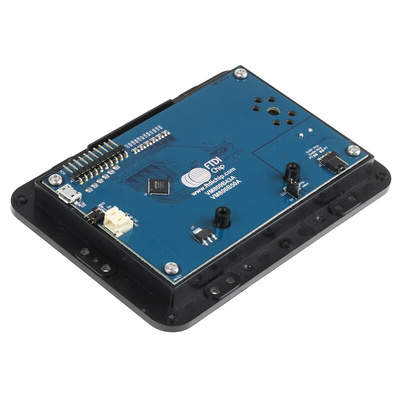

The Bridgetek screen evaluation module offers a high-quality 4.3in resistive touch display system in an elegantly designed, form-fitted bezel that provides a fitted display and component board in a rugged, plastic enclosure. It is offered in black (-BK) colour. This display sub-system provides the engineers with a cost-efficient option, which can cut short the development time while enabling a production finished look. The modules are designed to control 4.3in display. This development kit is used for FTDI's FT800, which is used to develop and demonstrate the functionality of the FT800 Embedded Video Engine (EVE). This module behaves as an SPI slave and requires an SPI Master for proper microcontroller interfacing and system integration.

Features and Benefits

5V tolerant buffers when used with a 5V SPI Master
Flexible power supply.
Integrated with a resistive touch screen LCD panel
On-board audio power amplifier and microspeaker
On-board LCD backlight LED driver
Powering the VM800B using either a 2.1mm power jack, SPI master connector or via USB Micro-B port

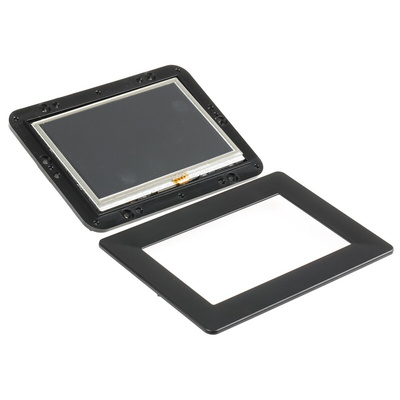

Precision fitted bezel in black (-BK)
Provides a high-quality display system
Ready to use LCD module

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
