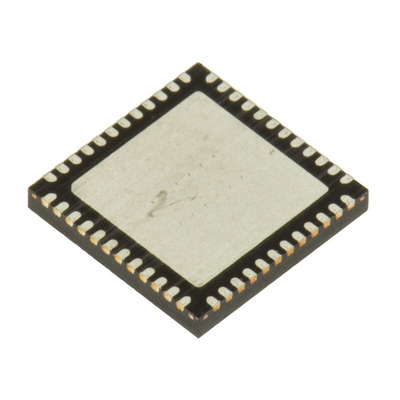

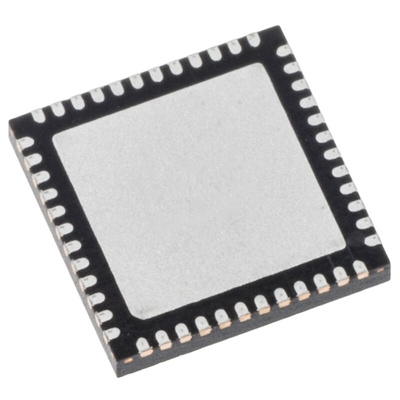

Bridgetek FT800Q-R, Graphics Controller 48-Pin QFN

Embedded Video Engine (EVE) FT800

The FT800 Embedded Video Engine (EVE) is a great and easy to use graphic controller. EVE’s approach eliminates the traditional frame buffer memory as it renders an image on a line by line basis, to 1/16th pixel resolution. EVE also comes preloaded with a useful set of fonts and sounds in ROM, making it applicable for any application. It’s targeted for embedded applications to produce high quality Human Machine Interfaces (HMIs). These LCD controllers have many applications, some of these include thermostats, medical appliances, instrumentation, home security systems, graphic touch pads and many more. The FT800 also has a 3 in 1 functionality that includes display, audio and touch operations. Dithering hardware also allows the chip to provide 24-bit (true colour) support on an 18-bit interface.

Key features –
•3 In 1 – Graphic controller, audio processing and resistive touch controller
•Built in graphics operations to allow users to create high-quality displays
•Built in sound synthesizer
•No frame buffer RAM required
•Display enabled control output to LCD panel
•Power mode control allows chip to power down, sleep and standby
•Supports host interface I/O voltage from 1.8V to 3.3V
•Mono audio channel output with PVM output
•Anti-aliasing support
•PWM output for programmable display brightness
