6ES7314-6BH04-0AB0, Siemens SIMATIC S7-300 Series PLC CPU for Use with SIMATIC S7-300 Series, Analogue, Digital Output, 24 (Digital), 4, ПЛК

S7-300C - Compact CPU

Compact CPU with integrated input and outputs
Models with PROFIBUS DP interface (DP) or point to point interface (PtP)

Note

Operation requires a SIMATIC Micro Memory Card and front connector (Order no. 453-2589)

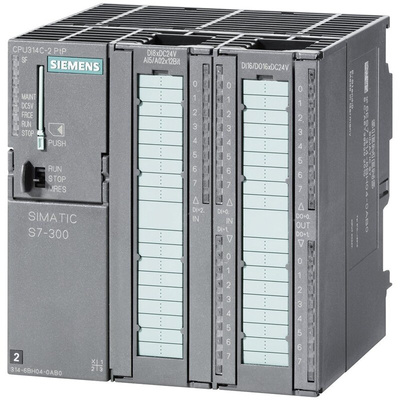

Siemens PLC CPU, 24 Digital Inputs, 4 Analogue Inputs - SIMATIC S7-300 Series - 6ES7314-6BH04-0AB0

Process data and instructions quickly and clearly with this compact CPU (central processing unit) from Siemens. It has 24 digital and 4 analogue inputs, so it can receive physical measurements as well as inputs from computer programmes. It's practical for use in industrial automation, robotic machinery and the automotive industry thanks to 4 high-speed counters that process data at 60kHz per second. This small-scale unit measures just 120 (W) x 125 (L) x 130mm (D), so it's useful in areas where space is limited. It has an MPI (message passing interface), which allows it to communicate conveniently with other controllers and operator panels.

• Easily mounted on a DIN rail or wall for quick installation
• PWM (pulse width modulation) outputs enable the control of valves and actuators
• 192kB (kilobyte) working memory allows multiple applications to function simultaneously without delay
• Capable of simple motion control to manage the velocity, position and acceleration of loads

Does this CPU need a micro memory card?

Yes. In order to function this CPU needs a SIMATIC micro memory card (467-642) and front connector (453-2589).

What voltage does this CPU run on?

This CPU runs on a 24V DC circuit, so it adheres to automation industry standards.

S7-300 Compact Base Units & PSU's

The S7-300 compact provides more power and additional features with an easy and simple upgrade path from the S7-200 series, and includes many of the common features & instructions found on other models within the range.

Supply voltage for all CPU’s : 24Vdc
24Vdc input
MPI interface for communications with other controllers and operator panels
Enhanced communications possible using either PtP (RS485/422 serial interface) or DP (Profibus DP) interface
CPU’s have integral counters, frequency measurement capabilities and PWM outputs enabling direct control of valves & actuators
Simple motion control possible without additional components

SIMATIC S7-300 CPU 314C-2 PTP - Data Sheet

Catalogue - Products for Totally Integrated Automation

Instruction Sheet - 6ES7314-6BH04-0AB0
