RS PRO 1/4 in BSP HVLP Spray Gun, 3 bar

RS PRO 1/4-inch BSP HVLP Spray Gun, 3 Bar

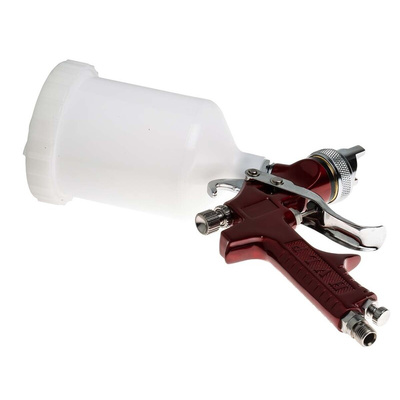

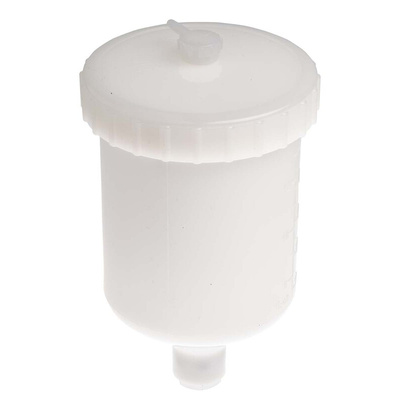

The RS PRO professional gravity-fed high-volume low-pressure (HVLP) spray gun is perfect for use in heavy-duty industrial applications. It features a stainless-steel fluid nozzle and needle, making it compatible with both water and solvent-based painting. The 0.6-litre nylon container is fitted with an anti-drip lid and an M16 x 1.5 mm fluid inlet.

The lightweight gun weighs only 604 g, so you can use it easily for extended periods without fatigue. It features a 1.4 mm spraying nozzle for high-precision performance. A 1/4-inch threaded air inlet accepts standard connectors, so the nozzle is compatible with commercially-available hose assemblies.

Operating at working pressures of 15 to 43 psi (1 to 3 bar), the nozzle has an air consumption of 380 litres or 6.7 cubic feet per minute. This will give you an approximate material flow of 150 ml per minute. You'll find this spray gun used in workshops and manufacturing situations.

Features and Benefits

• High-volume low-pressure (HVLP) spray gun
• Working pressures of 15 to 43 psi/1 to 3 bar
• Maximum working pressure of 3 bar
• Air consumption of 380 litres / 6.7 cubic feet per minute
• Material flow of 150 ml per minute

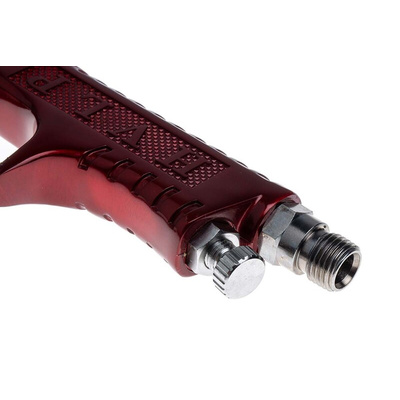

• Threaded 1/4-inch BSP (British standard pipe) connection

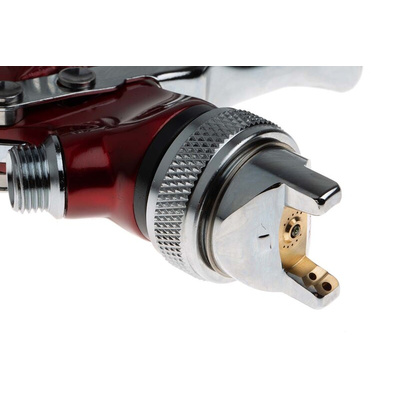

• 1.4 mm spraying nozzle
• Weight of 604 g
• Conforms to the American National Standards Institute Electrostatic Discharge Association S20.20:2014 and British Standard European Norm 61340-5-1:2007 standards for electrostatic control
