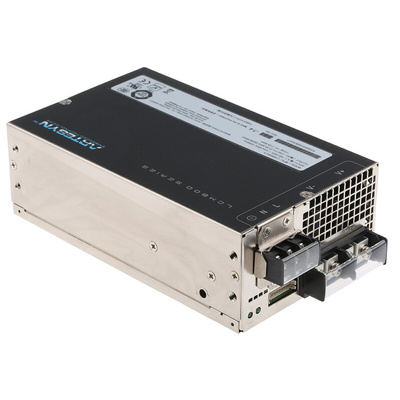

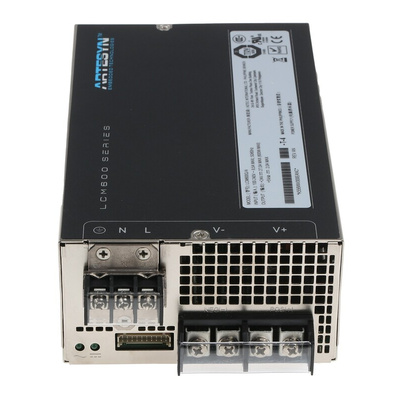

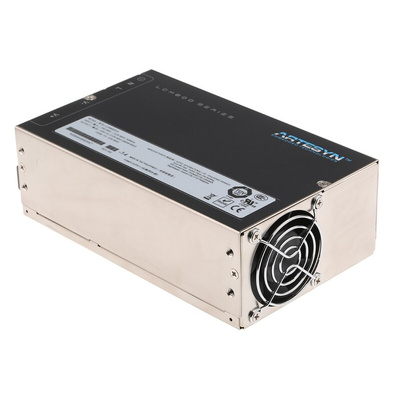

Artesyn Embedded Technologies Switching Power Supply, LCM600Q-T-N-4, 24V dc, 27A, 600W, 1 Output, 85 → 264V ac, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

The Artesyn Embedded Technologies embedded switch-mode power supply from the LCM600 series is a 600W rated, AC to DC plug-in device with 1 output. It is a cost-effective solution in the form of a single output bulk front end power supply. The power supply has terminal block input. It has a universal input supply voltage rating range from 85VAC to 264VAC and 120VDC to 300VDC.

Features and Benefits

Conformal coat option
DSP controlled front end
Margin programming
OR-ing FET
Output current is 27A at 24VDC
Total current is 27A maximum
Typical efficiency is 89%

Applications

Industrial
Medical
Military and process automation

Certifications

EMI class B
EN61000
Industrial and medical safety approvals
UL60601
UL60950-1
VDE60601
VDE60950-1

LCM600Q-T-N-4 - Data Sheet
