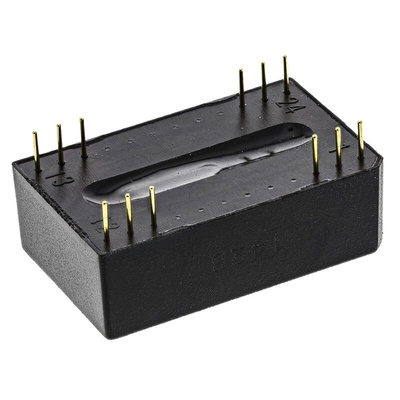

TEM 3-2423N, TRACOPOWER TEM 3N DC-DC Converter, ±15V dc/ ±100mA Output, 21.6 → 26.4 V dc Input, 3W, Through Hole, +85°C Max, Преобразователь

Traco 3W DIP Fully Regulated Isolated DC-DC Converter - TEM 3N Series

The Traco Power TEM 3N series is a range of isolated DC/DC converters in a DIP-24 package.
The offer tight output regulation and very low output noise. The TEM 3N series provides a cost effective solution for many industrial or consumer electronics applications.

Cost optimized design in DIP-24 package
Fully regulated output
Output ripple & noise 30 mVpp
Short circuit protection
Operating temperature range –40C to +75C at full load
I/O isolation 1’000 VDC
Input filter meet EN 55022, class A
No minimum load required
Industry standard pin out
3-year product warranty

Standards

EN 60950-1, UL60950-1

Approvals

CSA File No. 226037

Traco Power TEM 3N Series DC-DC Converter, 82% Efficiency, Through Hole Mount - TEM 3-2423N

This high efficiency DC-DC converter from Traco Power, part of the TEM 3N series, offers a cost effective solution for industrial and consumer electronics applications. With its isolated design, tight output regulation, and low output noise, this converter ensures reliable performance in a compact DIP 24 package. operating within a wide temperature range from 40°C to +85°C, this converter is ideal for automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Dual output with ±15 V dc output voltage
• 82% efficiency for optimal energy utilization
• Isolated design with 1.5 kV dc isolation voltage
• Through hole mounting for secure installation
• 3W power rating suitable for various applications

Applications

• Designed for automation systems requiring stable power supply
• Ideal for electronic devices operating in harsh environments
• Suitable for industrial machinery requiring dual output voltage
• Perfect for electrical control systems with specific power requirements

Can it provide stable power output for industrial automation systems?

Yes, this DC-DC converter offers tight output regulation and dual outputs, making it perfect for industrial automation applications.

Will it suit electronic devices operating in extreme temperatures?

Yes, with an operating temperature range of -40°C to +85°C, this converter is ideal for harsh environmental conditions.

Is it suitable for use in electrical control systems?

Yes, this converter is designed to meet the power requirements of various electrical control systems with its dual output and high efficiency design.

Can it be mounted securely in different mechanical setups?

Yes, with its through hole mounting feature, this converter ensures a reliable and stable installation in any mechanical setup.
