RSCM100, Martindale CM100 Clamp Meter, Max Current 3000A ac With UKAS Calibration

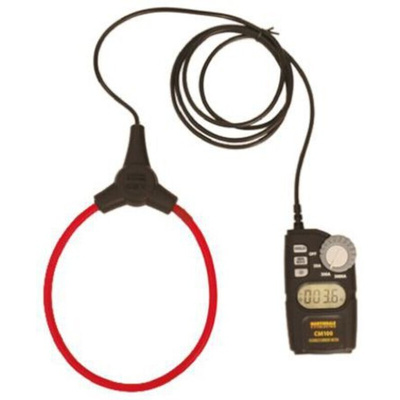

CM100 Flexible True RMS AC High Current Flex Clamp Meter

The CM100 is a clamp meter with a flexible current sensor capable of measuring true RMS AC current up to 3000A in 3 ranges (30A, 300A, 3000A). The flexible current sensor is beneficial for the measurement of different sizes and shapes of conductor which cannot be measured with a standard clamp meter. It's a popular choice for electricians, technicians, and engineers who need a reliable and versatile tool.

Features and Benefits:

• Flexible sensor - designed for measuring current in tight spaces or around awkwardly shaped conductors
• Lightweight and simple to use with Min/Max Indication, Display Hold, Auto Power Off and Display Backlight.
• True RMS measurement - accurately measures AC current, even on distorted waveforms caused by modern electronics and non-linear loads.
• Backlit display - easy to read in low-light conditions.
• Auto power off: Conserves battery life
• AC Current: 10mA to 3000A (in 3 ranges)
• Accuracy: 3.0% of readgin + 5 digits (45 - 50Hz)
• Operating Environment: 0°C to 50°C <80% RH, non condensing
• Pollution Degree: 2
• Probe Cable Length: 18" (45.8cm)
• Probe Cable Diameter: 8.35 nominal
• Cable Length (probe to meter): 1.8 m

Supplied with

2 x 1.5V AAA batteries and instructions
