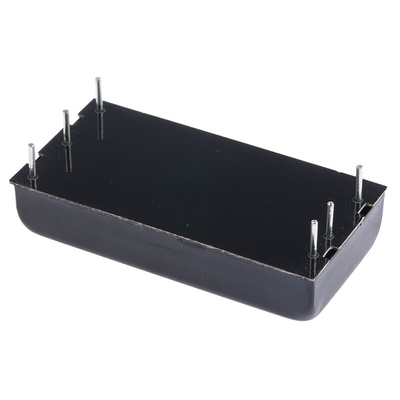

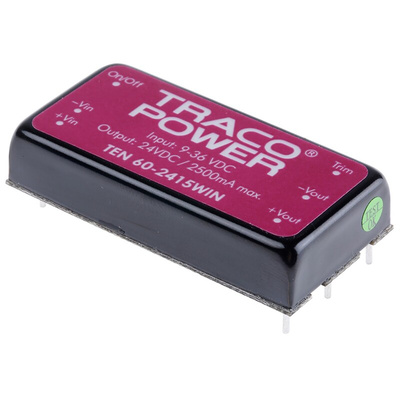

TEN 60-2415WIN, TRACOPOWER TEN 60WIN DC-DC Converter, 24V dc/ 2.5A Output, 9 → 36 V dc Input, 60W, Through Hole, +85°C Max Temp, Преобразователь

Traco 60W Regulated Isolated DC-DC Converter - TEN-60WIN Series

The Traco Power TEN 60WIN Series is a range of isolated high performance DC-DC converter modules. Due to the very high efficiency of up to 92% and the use of highest reliable components these 60W isolated converters come with a footprint of only 2 x 1 inches. These Traco Power 60W DC/DC converters have a wide 4:1 input voltage range. The TEN 60WIN includes On/Off remote control and protection against over voltage, under voltage lockout and short circuit. These Traco Power DC/DC converters are the ideal solution for battery operated systems, thanks to their high efficiency and low input current characteristics. Typical applications for these 60W DC/DC converters include wireless networks, telecom/datacom, industry control systems and measurement equipment.

2 x 1 inches metal package
Wide 4:1 input voltage range 9–36, 18–75 VDC
High efficiency up to 92%
Adjustable output voltage
No minimum load required
Operating temperature range –40°C to +85°C
Input filter to meet EN55022, class A
Remote On/Off
Under voltage lockout
Lead free design, RoHS compliant
3-year product warranty

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Traco Power DC-DC Converter, 1.5kV DC Isolation Voltage, 92% Efficiency - TEN 60WIN Series - TEN 60-2415WIN

Does your battery-operated kit need a stable 24V DC power supply? Link it up with this DC-DC converter from Traco Power. The unit accepts a wide input voltage range between 9 and 36V DC and converts it into consistent and regulated 24V DC output. This helps to keep your equipment operating reliably. As the device meets EN 61000-4-2 immunity standards, you can rely on its minimal interference with nearby electronics. For full protection against power faults, this converter safely puts a stop to short circuits, overload and overcurrent before they can disrupt your setup.

Features & Benefits

• Remote on/off function for convenient operation from a distance
• Quick start-up time of 60ms, so you can trust it to react almost instantly to your equipment's power needs
• Flame-retardant potting boosts safety by reducing the risk of fire spreading
• Robust copper casing resists wear for longevity in harsh operating environments

Applications

• Wireless networks
• Industrial control systems
• Data and telecommunication systems

Is the voltage output of this DC-DC converter adjustable?

Yes, you can adjust the voltage output of the unit by +20% and -10% to exactly match the needs of your equipment.
