RACD07-350, Recom LED Driver, 10 → 20V dc Output, 7W Output, 350mA Output, Constant Current / Constant Voltage, Драйвер светодиодов

7W Power Supply, Switch mode, RACD07 Series

The Recom RACD07 series are fully sealed IP67 LED drivers, suitable for use in sanitary facilities or basement as well as exteriors. This LED driver is protected against short circuit, overload and over voltage conditions. The Recom RACD07 has a high isolation voltage of 3750Vac between input and output. Thanks to its universal input range of 90-295 Vac the RACD07 is suitable for applications worldwide.

Universal AC input
Constant Current operation
Isolation 3.75k Vac
Over current and Short circuit protection
IP67 Rated
3 year warranty

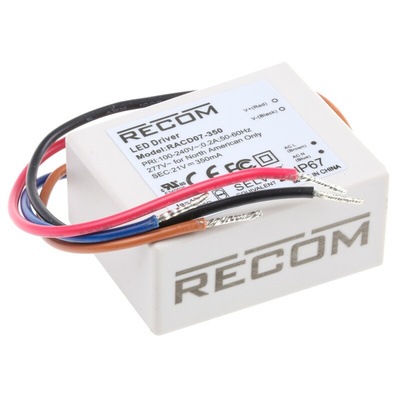

RECOM LED Driver, Wired Connections, IP67 Rating - RACD07 Series - RACD07-350

To make sure your power supply and lighting system work hand in hand, install this RECOM LED driver. It converts AC or DC inputs to DC outputs between 10 and 20V, so there's no need to worry about overloading your equipment. By providing 7W, the device supports many appliances at once to make quick work of power distribution. A 70% efficiency rating means it cuts down on waste to give you energy-efficient conversion every time. Electrical faults are no threat to this driver, as it's backed by built-in overcurrent and short-circuit protection.

Features & Benefits

• Wired conductors connect without soldering, so they're easy to adjust later
• Compact body measurements of 57 (L) x 40.8 (W) x 24mm (H) make for hassle-free installation in limited spaces
• Insulating plastic casing helps to limit your exposure to dangerous electrical loads
• Colour-coded wires to conveniently identify connections

Applications

• Metalworking facilities
• Vehicle dashboards
• Manufacturing industry

What temperatures can I use this LED driver in?

This LED driver works efficiently in temperatures between -20°C and +50°C, so you can depend on it in tough industrial settings.
