RSET5, Martindale Multifunction Tester

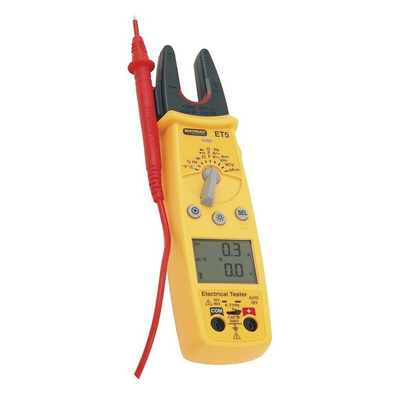

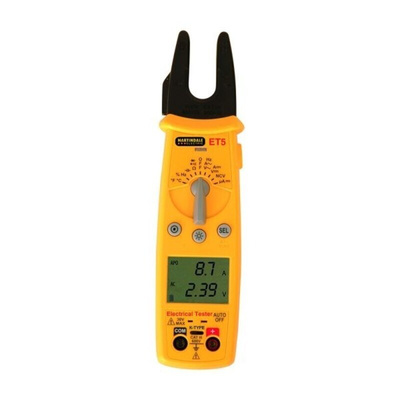

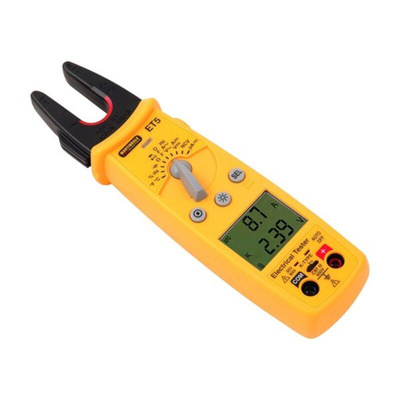

ET5 Electrical Tester

The Martindale ET5 is a compact electrical tester for measuring voltage, resistance and current. The electrical tester has all of the same useful functions as the ET4 but with the additional features of capacitance, temperature and duty cycle.

AC / DC Current: 0.1A to 200A
AC / DC Voltage: 0.1mV to 600V
Resistance: 0.1Ω to 50MΩ
Frequency: 30Hz to 400Hz
Continuity: 0.1Ω to 500Ω, buzz at <30Ω
Diode Test: 1mV to 2V
Non-Contact Voltage Indicator: 70V to 600V
Temperature Measurement: -35°C to +500°C
Duty Cycle
Capcitance
Fork maximum conductor size: 15mm diameter
Power: 9V PP3 Alkaline (included)
Dimensions: 202 x 51 x 44 mm
Weight: 200g (battery included)

SAFETY

Conforms to BS EN 61010-1, BS EN 61010-2-032, CAT III 600 V
Class II, Double Insulation
Pollution Degree 2, indoor use

EMC

Conforms to BS EN 61326-1

Supplied with

TL17 test leads, 9V battery, K type thermocouple and instructions

Datasheet
