RSCD1000, Martindale CMD1000 Cable Tracer, Cable Detection Depth 0.4 (U AC) m, 0.5 (Dual Pole) m, 2 (Single Pole) m, 2.5 (Single

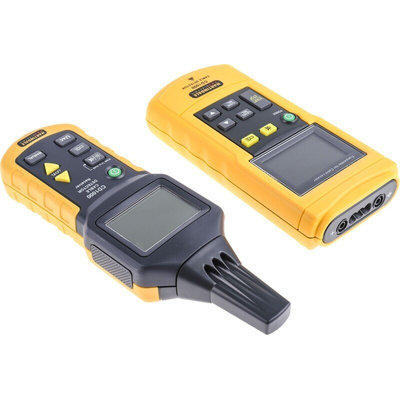

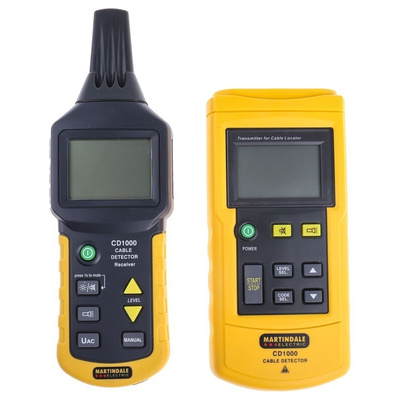

CD1000 Cable Detector Kit

The Martindale CD1000 Cable Detector is ideal for tracing cables in walls and underground, locating fuses/breakers on live or dead circuits and locating interruptions and open-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes.

For all applications (live or dead cables) without additional instruments
Proven digitally coded sender signal guarantees clear signal identification

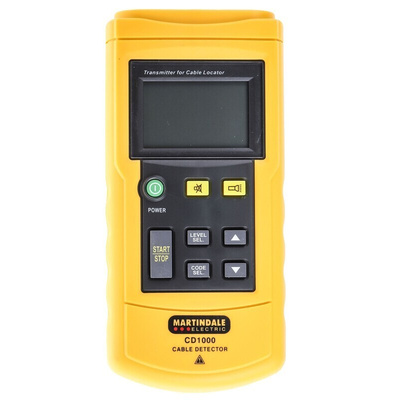

Transmitter with LCD display for transmitting level, transmitting code

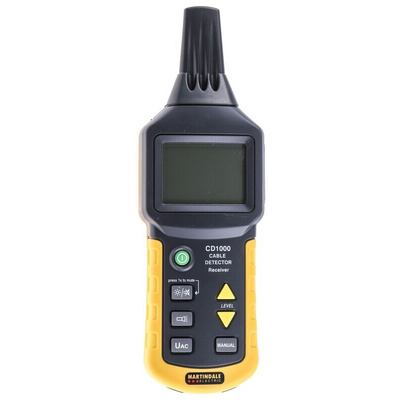

Receiver with a backlight LCD display for level of receiving signal, code of receiving signal and live voltage indication
Automatic or manual adjustment of receiving signal sensitivity
Mute function
Auto power off
Additional torch lamp for working in dark environments
Additional transmitters can be used for multiple users

Conforms to BS EN61010-1 CAT III 300V
Class II Double Insulation
Pollution degree: 2

Transmitter:

Conforms to BS EN 61010-1 CAT III 600V
Class II Double Insulation
Pollution degree: 2

Receiver:

Supplied with

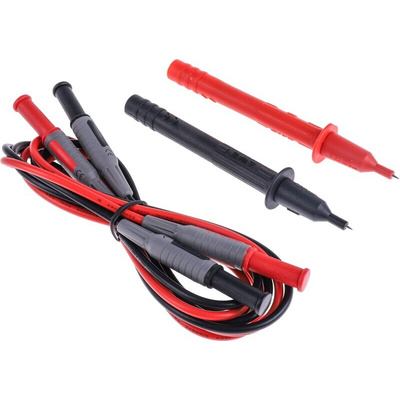

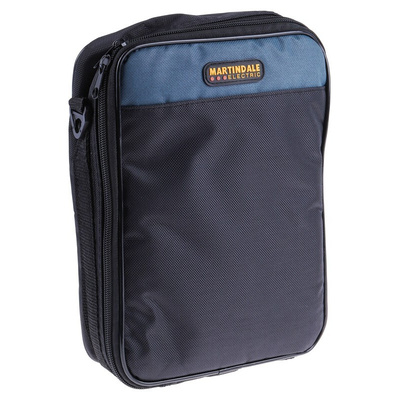

Transmitter, Receiver, bag, TL47 test leads (with crocodile clips), earthing rod, 9V alkaline battery, 1.5V alkaline battery x 6 and instructions

CD1000 Cable Detector
