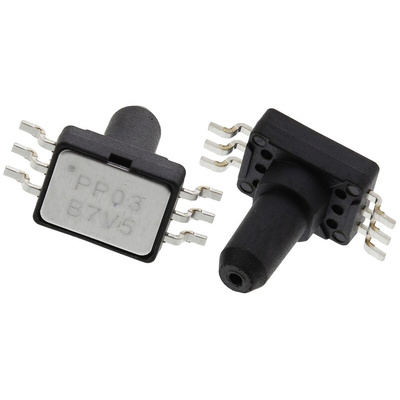

2SMPP-03, Omron Pressure Sensor, -50kPa Min, 50kPa Max, Amplified Output, Relative Reading, Датчик давления

Pressure Sensors, Omron

Solid state MEMS Pressure Sensors utilising piezo-resistive elements to provide superior electrical performance when compared to capacitive element types. They feature low power consumption and ultra-compact dimension, with good linearity and low temperature drift.

The Omron Electronic Components a 2SMPP-03 is a solid state MEMS Pressure Sensors utilising piezo-resistive elements to provide superior electrical performance when compared to capacitive element types. They feature low power consumption and ultra-compact dimension, with good linearity and low temperature drift.

Superior electrical characteristics
at -50 kPa to 50 kPa pressure range.
Offset voltage of -2.5±4.0 mV
Span voltage of 42.0±5.5 mV
(At rated pressure 50 kPa, 100 μADC Current supply)
Small package 6.1 ´ 4.7 ´ 8.2 mm (L ´ W ´ H).
Good temperature dependency
at 0 to 85°C, at rated pressure 0 to 50 kPa
Temp. influence of span of ±3.0%FS
Temp. influence of offset of ±5.0%FS
(100 μADC Current supply)
Rated power consumption of 0.2 mW

Pressure Sensors, Omron

2SMPP MEMS Gauge Pressure Sensors Datasheet
