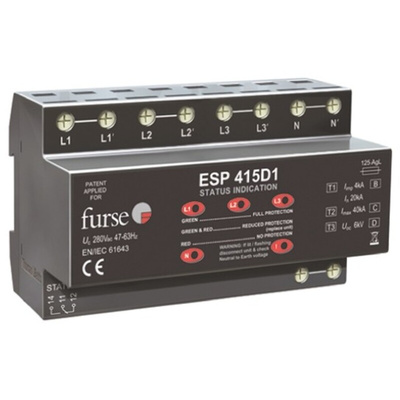

7TCA085460R0105 ESP 415D1, WJ Furse, D1 Lightning / Surge Arrester 280 V Maximum Voltage Rating 6.25kA Maximum Surge Current Mains Surge Protector

WJ Furse Power distribution systems enhanced surge protector- ESP-D1 Series

Enhanced surge protector for use on power distribution systems
Very low let-through voltage between all lines (L-E, L-N, N-E)
LED status indication with pre-failure warning
Remote indication through volt-free contact
Robust steel housing
Compact DIN housing
Neutral to Earth voltage warning

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage spikes are usually caused by lightning strikes and can reach up to 6000V, with current surges of over 3000A. The maximum size of the let-through voltage and current inrush depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Protection for Data and Signal Lines in Intrinsically Safe Circuits Application Note

Choosing the Correct Furse ESP Lightning Barrier for your Application

Protection of Wind Turbines Application Note

Protection of Photovoltaic (PV) Systems Application Note

ABB IET Wiring Regulations BS 7671 18TH Edition

ESP 415D1 Datasheet
