RS PRO Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 10 → 32 V ac, 10 → 48V dc

7886996
Производитель: RS PRO
Цена за шт.
66062.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

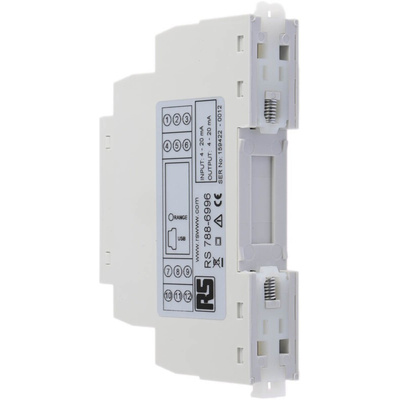

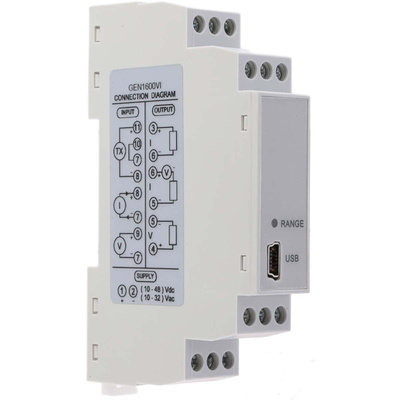

RS PRO Current Output, Signal Conditioner

This smart current-output signal conditioner from RS PRO is a reliable way to isolate or convert analogue input signals to current outputs. A multi-purpose device, the converter automatically configures to AC or DC supply. Products can accept sink or source applications thanks to a transmitter power supply on both the input and output.

The conditioner's screw terminals and compatibility with DIN rail mounting make for a hassle-free installation on-site without the need for specialised tools. And as it's fitted with a USB interface, configuring the signal conditioner to your needs is quick and easy. Simply download and install free software tools for 22-segment user linearisation/profiling, maths functions and input signal damping.

Part of the RS PRO range, this product is stringently tested for quality and consistency. Signal conditioners are commonly used in a variety of industrial environments for machine panel control and process automation.

Features and Benefits

• Analogue-to-current signal conditioner
• Smart converter, configurable via USB interface
• Accepts inputs of -50 mA to +50 mA and -50 V to +50 V
• Minimum operating temperature of -30°C
• Maximum operating temperature of 70°C
• DIN rail mountable for easy installation
• Conforms with CE standards for health, safety and environmental protection

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Software download available here

Техническая спецификация
pdfInstruction Manual
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Встречающиеся стандарты:
CE
Входной диапазон:
-50 → +50 mA, -50 → +50V
Выходной диапазон:
0 → 21.5 mA, -10 → +10V
Диапазон рабочих температур:
-30 → +70°C
Интерфейс:
USB Кабель
Напряжение питания:
10 → 32 V ac, 10 → 48V dc
Окончание:
Винт
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-30°C
Серия:
MINI MCR-2-RPS-I-I-OLP
Тип входного сигнала:
Ток, Напряжение
Тип выходного сигнала:
Ток, Напряжение
Тип модуля:
Signal Isolator
Тип монтажа:
Крепление на DIN рейку
