RS PRO Signal Conditioner, RTD, Thermocouple Input, Current, Voltage Output, 10 → 32 V ac, 10 → 48V dc

7886999
Производитель: RS PRO
Цена за шт.
66066.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

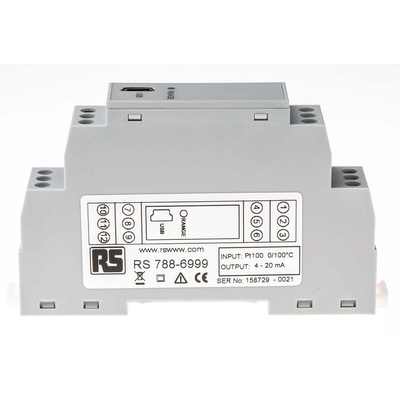

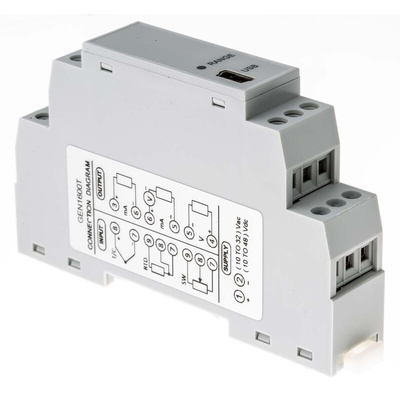

RS PRO Current Output, Signal Conditioner

Use this current-output signal conditioner to reliably convert analogue temperature input signals from RTD, thermocouple or slidewire to either voltage, bipolar voltage or current re-transmission signals outputs. The converter automatically configures to AC or DC supply. A transmitter power supply is provided on both input and output, meaning the product can accept sink or source applications.

Able to accept inputs from resistive sensors in the range of 0 to 100 KΩ, -100 to 200 mV, -200 to +2000 °C, the converter's flexible design makes it a versatile choice. It's fitted with a USB interface for quick and easy configuration, so you simply download and install free software tools for 22-point linearisation characteristics to customise this smart converter to your needs.

Part of the RS PRO range, this product is stringently tested for quality and consistency. It's commonly found in a variety of industrial uses like factory automation and process control.

Features and Benefits

• Temperature-to-current signal conditioner
• Smart converter, configurable via USB interface
• Accepts inputs of 0 to 100 KΩ, -100 to 200 mV, -200 °C to +2000 °C
• Output ranges of 0 to 10 V and 0 to 21.5 mA
• Minimum operating temperature of -30°C
• Maximum operating temperature of 70°C
• DIN rail mountable for easy installation
• Conforms with CE standards for health, safety, and environmental protection

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Встречающиеся стандарты:
CE
Входной диапазон:
0 → 100 KΩ, -100 → 200 mV, -200 → +2000°C
Выходной диапазон:
0 → 10 V, 0 → 21.5mA
Диапазон рабочих температур:
-30 → +70°C
Напряжение питания:
10 → 32 V ac, 10 → 48V dc
Окончание:
Винт
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-30°C
Серия:
MINI MCR-2-RPS-2I-2I-OLP
Тип входного сигнала:
RTD, Термопара
Тип выходного сигнала:
Ток, Напряжение
Тип модуля:
Temperature Converter
Тип монтажа:
Крепление на DIN рейку
