7MH4960-2AA01, Siemens PLC Expansion Module for use with S7-1200 Series 70 x 75 x 100 mm Digital 4 Analogue, Digital 24 V dc, Модуль расширения

Siemens Weighing Module

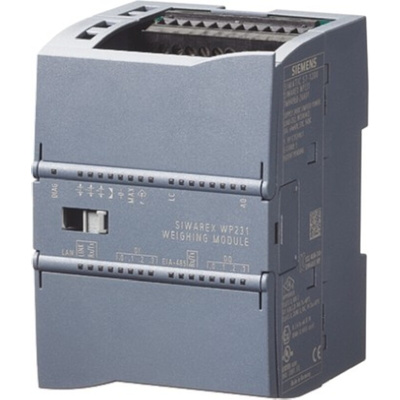

The Siemens weighing module is a versatile weighing module for all the simple weighing and force measuring tasks. This compact module is easy to install in the SIMATIC S7-1200 automation system. It can also be operated without a SIMATIC CPU. This module allows direct connection to S7-1200 components via a sliding connector. The rail mounting of the 70mm (2.76in) wide weighing module means that it is extremely easy to mount/wire. The power supply, load cells, the RS 485, digital input/outputs and the analogue output are connected via a screw connector of the weighing module. An RJ45 connector is used for the Ethernet connection. The primary task of SIWAREX WP231 is the measurement and conversion of sensor voltage into a weight value. Up to three interpolation points are used for the weight calculation. The signal can also be digitally filtered if required.

Features and Benefits

Uniform design technology and consistent communication in SIMATIC S7-1200
Uniform configuration with TIA Portal
Operation without SIMATIC CPU possible
Direct connection of an operator panel via Ethernet
Direct connection of a remote display via RS 485 interface
4 digital inputs and outputs
1 analogue output
Measurement of weight or force with a high resolution of 1 part per million and an accuracy of 0.05%
Simple adjustment of scale using the SIWATOOL V7 program via the Ethernet interface
Supports automatic adjustment without adjustment weights
Commands available for zeroing and taring
Supports replacement of module without renewed adjustment of scale
Safe to use in hazardous area zone 2
4 digital inputs
5 analogue/digital outputs

Applications

Non-automatic weighing machines
Fill level monitoring of silos and bunkers
Measuring of crane and cable loads
Load measuring for industrial lifts and rolling mills
Scales in zone 2 hazardous areas
Force measuring, container weighing, platform scales and crane scales
Connect load cells, force sensors or torque measuring shafts

Certifications

ATEX Zone 2

SIWAREX_Weighing Module WP231 - Data Sheet
