7MH4702-8AG, Siemens PLC Cable for Use with SIWAREX WP231

S7-1200 - Special Cable for SIWAREX Moules

SIWAREX WP231 is a versatile weighing module for all simple weighing and force measuring tasks. The compact module is easy to install in the SIMATIC S7-1200 automation system. It can also be operated without a SIMATIC CPU.

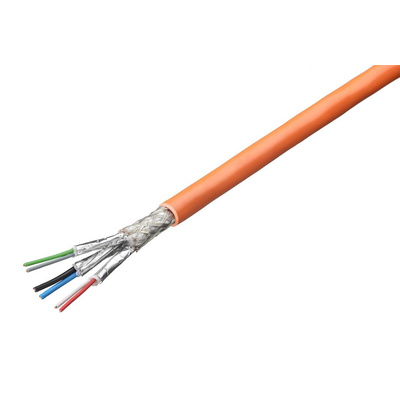

Connecting cable for SIWAREX weighing module WP231
Cable Li2Y 1 x 2 x 0.75 ST + 2 x (2 x 0.34 ST) – CY
Orange or blue sheaths available
For fixed laying, occasional bending permitted
Outer diameter approx.10.8 mm
Ambient temperature -40 to +80 °C
Cable length: 1 m

Orange sheath (Stock-no.: 788-7012)

To connect SIWAREX U, CS, MS, FTA, FTC, M, CF and SIWAREX WP231 to the junction box (JB), extension box (EB) or Ex interface (Ex I) or between two JBs
Orange PVC insulating sheath

Blue sheath (Stock-no.: 788-7003)

To connect the junction box (JB) or extension box (EB) in a potentially explosive atmosphere to the Ex interface (Ex I)
Blue PVC insulating sheath

SIWAREX_Weighing Module WP231 - Data Sheet
