7MH4900-3AA01, Siemens PLC Expansion Module for Use with S7-300 Series, Модуль расширения

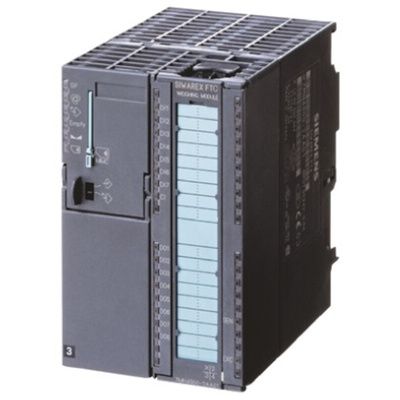

S7-300 - SIWAREX FTC Weighing Module

SIWAREX FTC (Flexible Technology Continuous Weighing) is the optimal solution wherever weighing technology requires high speed and accuracy. It is a versatile and flexible weighing module for the SIMATIC S7-300 and can be read directly on the SIMATIC S7-300 or ET 200M bus.
The function module SIWAREX FTC is integrated in SIMATIC and uses all features of the modern automation system such as integrated communication, diagnostics system and project configuration tools to its advantage.
SIWAREX FTC can be used for creating container scales, platform scales, force measurement devices, belt scales, loss-in-weight scales and bulk flow measurement devices.
Connection with the load cells is done using 40-pin standard front terminal strips, the power supply is through a 2-pin plug and the serial interface is through a 9-pin D-type plug connector.

Module for Belt scale
24 Vdc power supply
80 mm wide module
High sample rate of 10 ms
Installation and cabling is simplified with the profile rail assembly
RS485 interface for connecting digital remote displays or load cells
RS232 interface for setting SIWAREX FTC parameters via PC
Direct application in the SIMATIC automation system
PID controller with extensive setting options (Loss-in-weight scale)
Integrated filter functions
Parameterizable function for inputs and outputs
Flexible adaptation to different requirements with SIMATIC
Exchange of module possible without readjusting the scales
Extensive monitoring and diagnostics functions
