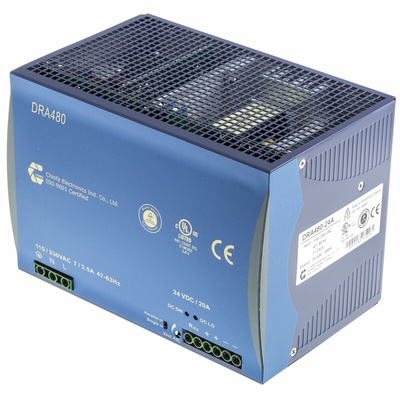

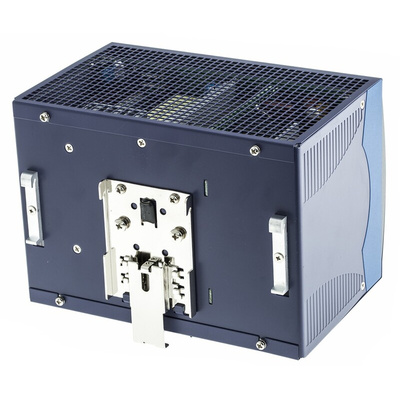

DRA480-24A, Chinfa DRA480 DIN Rail Power Supply, 90 → 264V ac ac Input, 24V dc dc Output, 20A Output, 480W, Блок питания

7894026
Номер производителя: DRA480-24AПроизводитель: Chinfa
Цена за шт.
65430.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CHINFA DIN Rail Power Supply

The CHINFA DIN Rail DRA series switch mode power supply has a universal input voltage ranging between 90VAC and 264VAC. The switch mode technology provides a compact design, high efficiency and low residual ripple. The rated output current is 20A at 24VDC output voltage. This power supply is especially designed for industrial control systems, process automation and industrial applications requiring stabilised DC voltage.

Features and Benefits

High efficiency of 89%
Internal input filter
MTBF is 403000 hours
Operation temperature ranging between -40°C and 71°C
Power rating is up to 480W
Regulated outputs
Ripple factor and noise is 100mV
Screw terminal connection
Short circuit protection

Applications

Electromagnetic drives
Factory automation
Industrial controls
Instrumentation

Certifications

CE certified
cUL
TUV
UL approved

Техническая спецификация
pdfDRA480 Series Data Sheet
