2CMA100166R1000, ABB B23 3 Phase LCD Digital Power Meter with Pulse Output, Измеритель мощности

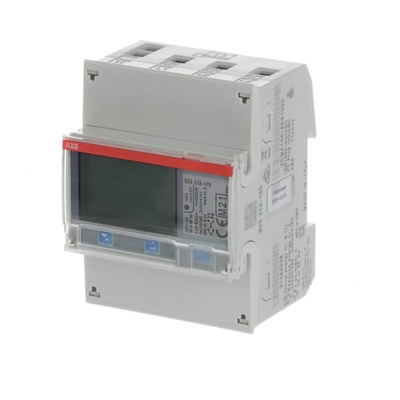

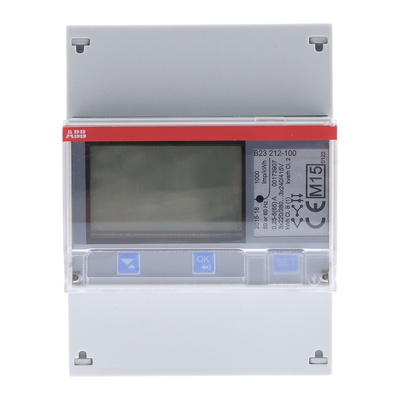

ABB Three-Phase Digital Power Meter

The ABB B23 series three-phase digital power meter is a basic indicator for installations. It has a rating of up to 65A that is either directly connected or transformer connected (CT). This meter is a high runner meter for many applications and installations. Navigating the meter is easily done via the push-buttons below the display. Data from the B series meters can be collected via pulse output or serial communication. The meter is enabled with an infrared port for communication with an external serial communication adapter (SCA) such as the KNX adapter.
Functions (Bronze-level)
Active and reactive energy
Import/export.
New Update:
A new update affecting all B Series meters makes these meters more intuitive to handling and setup. This includes an updated HMI that reduces time to install with fewer clicks to configure the meters leads and reduced cost for the installer.
- Reduced clicks to configure the most common setting
- Reduced steps to set pulse output
- Text that's easier to read and understand
- Alarms are inactive as default

Features and Benefits

4 DIN width with IR port
Direct connected electricity meter
2 and 3 element metering
Communication is RS-485
Instrument values
Alarm function
LCD display
Number of digits are 7
Pulse output
Depth is 65mm
Meter accuracy is 1%
Minimum temperature is -40°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Electricity Meters - Data Sheet

Electricity meters - Brochures

Electricity Meter Specification Guide

Technical Sheet

Installation Manual
