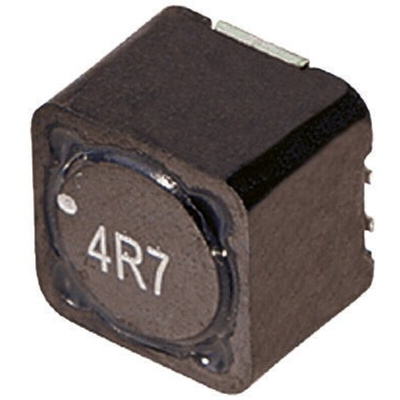

7447714101, Wurth Elektronik Wurth, WE-PD, 1050 Shielded Wire-wound SMD Inductor 100 μH ±20% Wire-Wound 1.5A Idc, Индуктор

WE-PD Series Magnetically Shielded Wire Wound Chokes

Wurth WE-PD wirewound surface mount inductor is magnetically shielded resulting in a low leakage field. These power inductors have high storage capacity and high current loading. Recommended solder profile: Reflow. Operating temperature -40 to +125°C.

Applications

Switching regulators with low operating voltages
Integrated DC-DC converters
Switching regulators with high efficiency (>86%)
Graphic cards

Note

Plastic base variant applications are particularly suited to high vibration or shock applications due to its one piece construction.

For a higher light efficiency in LED applications, Würth Elektronik has now included the WE-PD in white coating in their product range. Mounted components are now also manufactured in a white colour, that when next to a circuit board makes a pleasant optical design possible. The SMD Power Inductor is available with white coating in the sizes 7332, 7345, 1260 and 1280 (all with plastic base).
Magnetically shielded version which results in a low leakage field
High storage capacity
Low self-losses
Highest possible current loading for SMD Inductors
Operating temperature: –40 °C to +125 °C
Recommended solder profile: Reflow
Switching regulators with low operating voltages (computer, laptop, mobile phones, pagers)
Integrated DC/DC-converter
Perfectly suitable for switching regulators with extremely high efficiency (> 86%)
Graphic cards
Plastic base: Because of the one piece construction these are more suitable for high vibration or shock applications

Wurth Non Standard SMT Inductors (Chokes)

7447714101 Data Sheet

High Power Wireless Power Transfer for the Industrial Environment - ANP032D Application Note

8 Design Tips for Power Inductors from Wurth Elektronik - Application Note
