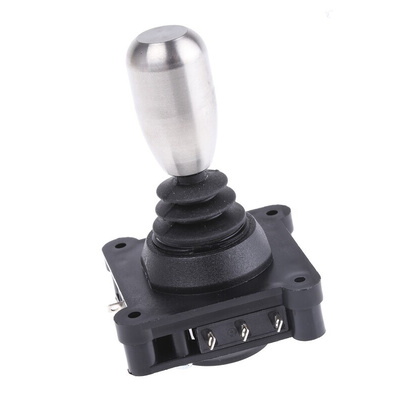

7D1ZAJ1500, Apem 1-Axis Joystick Stainless Steel, IP67 250V, Джойстик-переключатель

Panel Mounted V4 1000 HE Series Joysticks

Due to the proven success of the 1000 series joysticks, APEM decided to extend the range and include variations intended for use in harsh environments. All options include a panel seal rating of IP67 and an operating temperature range of -20 to +50°C.
The series comes sprung to centre as standard with an open square gate giving full control of both the X and Y axis (north, south, east and west). To give you the highest possible flexibility of connection, they are supplied as standard without a cable harness.
These units are fitted with the Option 3 version of switches and are able to switch up to 10A on a 240 V ac circuit, higher than most applications would require. The handles are mounted to a stainless steel shaft which in turn is fitted with a Kumho/Neoprene sealing boot. The boot is able to offer protection from substances such as oils and petroleum and is UV resistant.

Features & Benefits

Double sealed
Oil/acid/alkali resistant boot
22 mm diameter bush mounting
V4 switches
Outer hex nut for wrench tightening

Product Application Information

The high level of ingress protection and the high-quality materials used to produce these units makes them ideal for outdoor use, lifting platforms and materials handling devices.

As well as having the standard IP67 front panel protection this unit also features sealed contacts. The contacts are fully enclosed and sealed to IP67. This unit comes with single pole contacts.

Aluminium toggle handle
Contacts fully enclosed and sealed to IP67
