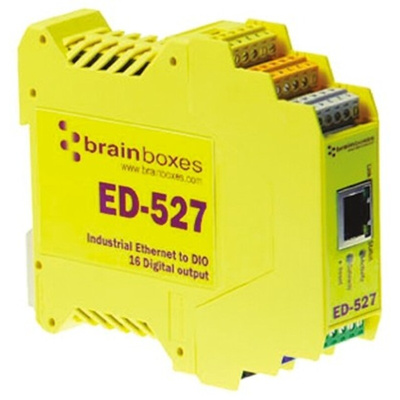

ED-527, Brainboxes Ethernet Media Converter

Brainboxes Ethernet to Digital I/O Output Converter

The Brainboxes Ethernet to digital I/O output converter is a state-of-the-art device with 16 non-isolated digital output channels. This device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It can be configured and secured from a web browser and can be installed as a COM port on a Windows PC for complete backward compatibility, essential for legacy applications. It offers robust and intelligent control side devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as 'process side'. The outputs are good for driving hot and cold resistive loads, capacitive loads, and inductive loads. It is especially suited for loads with high inrush currents such as cold bulbs/lamps and motors.

Features and Benefits

16 digital outputs and an RS485 gateway port
Control any output from TTL to high voltage, high current industrial devices
Factory floor process control and automation
Gateway Port for NuDAM/ADAM modules
Integrated DIN rail mount
Only 22.6mm wide
Easy wire feature with removable screw terminal blocks
Supports simple ASCII or industry-standard Modbus TCP
LED Status indication
Operating temperature ranges between -30°C and 80°C
Software APIs for visual basic, C#, and more
Easy to use interface
Input supply 5VDC to 30VDC
Drives high current and high voltage loads
Ideal for inductive, capacitive and resistive load

Applications

Control and switching of AC and DC motors
Fans
Relays drivers
Pumps
Voltage regulator
LED's and bulbs
Air conditioning
Heaters and solenoids

Certifications

CE

Ethernet Converter ED-527 - Data Sheet
