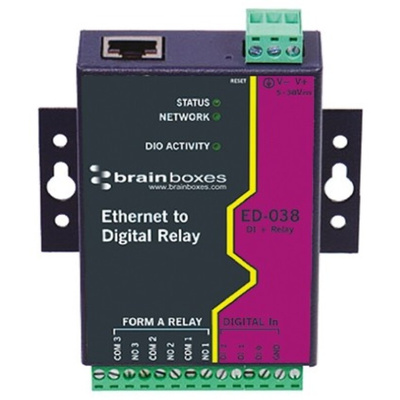

ED-038, Brainboxes Ethernet Media Converter

7898132
Номер производителя: ED-038Производитель: Brainboxes
Цена за шт.
62025.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Brainboxes Ethernet to Digital IO Relay Converter

The Brainboxes Ethernet to digital I/O relay converter is a state-of-the-art device with 3 non-isolated inputs and 3 outputs. This device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It can be configured and secured from a web browser and can be installed as a COM port on a Windows PC to give complete backward compatibility, essential for legacy applications. It offers robust and intelligent control side devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as process side. The outputs are good for driving hot and cold resistive loads, capacitive loads and inductive loads and are especially suited for loads with high inrush currents such as cold bulbs/lamps and motors.

Features and Benefits

3 Digital inputs and 3 Form A relays
1 Ethernet port
Drives high current and high voltage loads
Ideal for inductive, capacitive and resistive loads
Power supply 5V to 30V
Simple web based configuration, monitoring and control
Factory floor process control and automation
User friendly software interface
Legacy compatible
Operating temperature ranges between 0°C and 60°C
Wall mountable
Software APIs for Visual Basic, C#, and more

Applications

Control and switching of AC and DC motors
Fans
Relays drivers
Pumps
Voltage regulator
LED's and bulbs
Air conditioning
Heaters and solenoids

Certifications

CE

Техническая спецификация
pdfDatasheet
