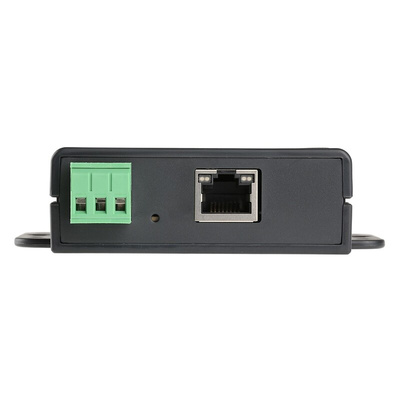

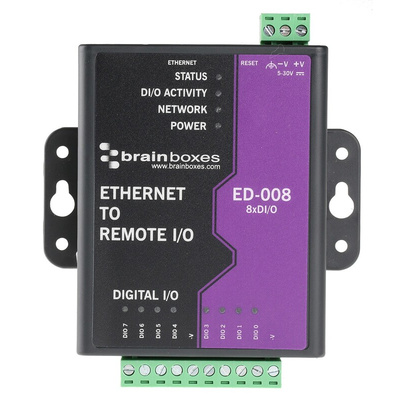

ED-008, Brainboxes Ethernet Media Converter

Brainboxes Ethernet Media Converter

The Brainboxes Ethernet media converter has 8 non-isolated digital input channels and 8 digital output channels. It offers robust and intelligent ’control side’ devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as the ’process side’. It can be configured and secured from a web browser and can be installed as a COM port on a Windows PC to give complete backwards compatibility, essential for legacy applications. Media converter is CE certified.

Features and Benefits

Drives high current and high voltage loads ideal for inductive, capacitive and resistive loads
Factory floor process control and automation
User-friendly software interface
Operating temperature range between 0°C and 60°C
Simple web-based configuration
LED status indication
Wall mount

Applications

AC and DC motors
Fans
Relay drivers
Pumps
voltage regulators
battery chargers
LEDs and bulbs
Air conditioners
Heaters and solenoids

Datasheet
