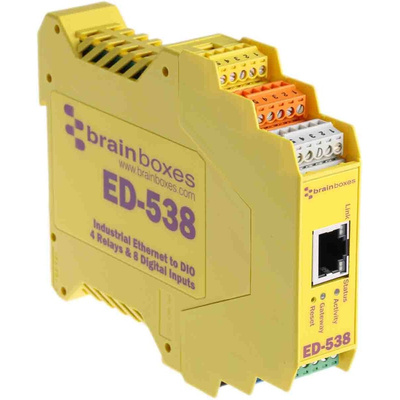

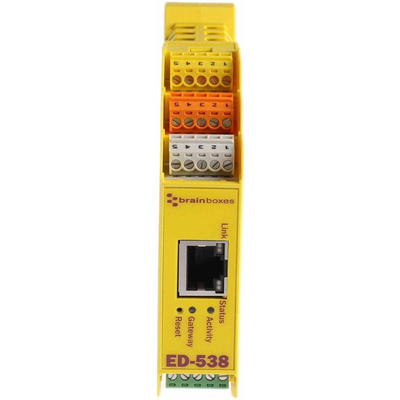

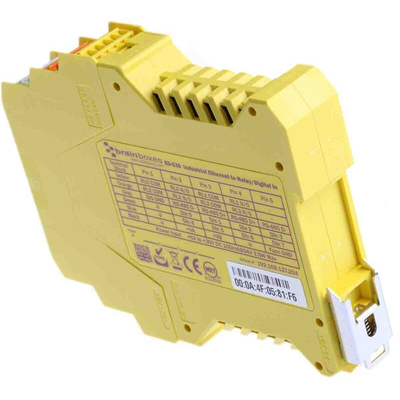

ED-538, Brainboxes Ethernet Media Converter

Brainboxes Ethernet to Digital I/O Relay Converter

The Brainboxes Ethernet to digital I/O relay converter is a state-of-the-art device with 8 non-isolated digital input channels and 4 digital relay output channels. It offers robust and intelligent control side devices that provide the interface to systems on the 24VDC factory floor environment, commonly referred to as process side. This device can be controlled over TCP/IP using the Modbus TCP protocol or simple ASCII commands. It can be configured and secured from a web browser and can be installed as a COM port on a Windows PC to give complete backward compatibility, essential for legacy applications.

Features and Benefits

Easy-wire: colour coded and numbered, removable terminal blocks
8 Digital inputs and 4 Form A Relays
Drives high current and high voltage loads
Factory floor process control and automation
Easy wire feature with removable screw terminal blocks
DIN rail mount
Supports simple ASCII or industry standard Modbus TCP
Operating temperature ranges between -30°C and 80°C
Software APIs for visual basic, C# and more
Network enable your NuDAM/ADAM modules
Easy to use interface
LED Status indication
5VDC to 30VDC power supply
Ideal for inductive, capacitive and resistive load
Only 22.6mm wide

Applications

Relays drivers
Pumps
Voltage regulator

Certifications

CE

Ethernet Converter ED-538 - Data Sheet
