504052-0098, Molex Pico-Lock Series Female Crimp Terminal, 28AWG Min, 24AWG Max, Контакты

1.50 mm Pitch Pico-Lock Crimp Terminal - 504052 Series

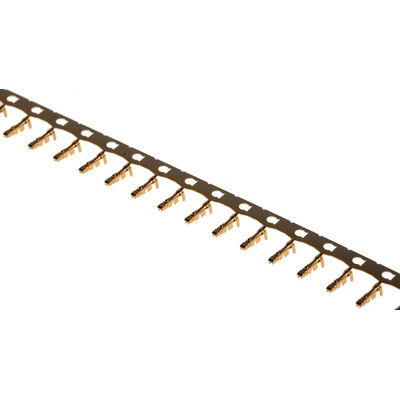

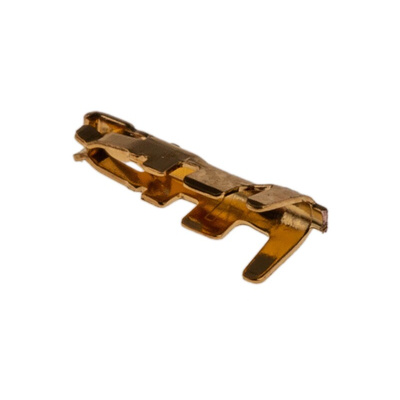

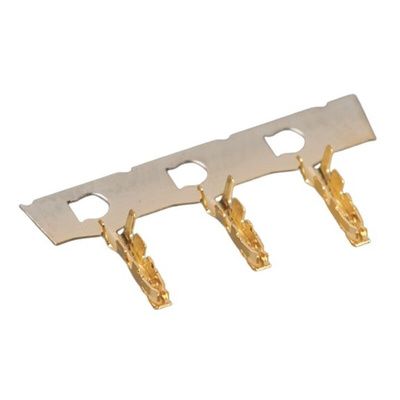

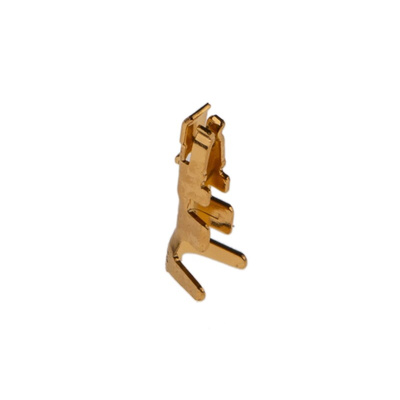

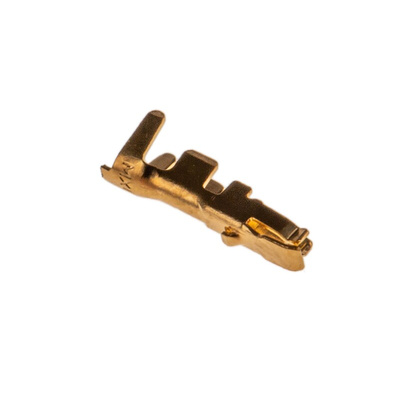

The Molex1.50 mm Pitch Pico-Lock 504052 Series Crimp Terminal is Gold plated allowing for 30 mating cycles.
Stock number 789-8378 accepts wire size 24-28 AWG with an Insulation Diameter of 0.8 ∼ 1.1 mm (UL1061).

Note

For use in Molex 1.50 mm Pitch Pico-Lock 504051 Series Crimp Housings stock number 789-8368 typical.

Molex Crimp Terminal, Female, 28 to 24AWG - Pico-Lock Series - 504052-0098

Features & Benefits

• Copper alloy contacts are gold-plated to improve conductivity and resistance to corrosion and oxidisation
• Accepts wire sizes between 28 and 24AWG for versatile use

Applications

• Home entertainment systems
• Automotive industry
• Mobile devices
• Safety and security networks

What connector housing can I use with this crimp terminal?

This crimp terminal works with any Pico-Lock connector housing with the series number of 504052, such as the 4-way version (789-8368).

1.5mm Wire to Board - Molex Pico-Lock

The Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board system provides positive locking with high current capacity and a very low profile on the PCB. The unique side positive lock design of the Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board system give this connector its ultra low profile with a mated height of 2 mm. Additional mating assurance of the Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board system is provided via top friction locks, visual mating confirmation and by the header having a wide solder tab that is shaped to pass over the top of the housing providing additional mechanical stability. Operator handling is aided by the Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board systems mating guide rib design which also provides polarization. The materials used for the Molex 1.50 mm Pitch Pico-Lock Wire-to-Board system are RoHS and Low-Halogen compliant.

1.50mm Pitch SMT Pico-Lock Crimp Terminal - Datasheet

1.50mm Pitch Pico-Lock Crimp Terminal - Drawing
