KS101, Sensata / Crydom Relay Cover for use with Single Phase SSRs, Three Phase SSRs, Крышка

Crydom Series 1 Solid State Relays

Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.

Features and Benefits

600 V blocking capacity
SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

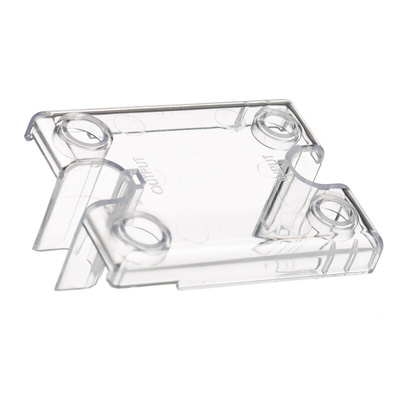

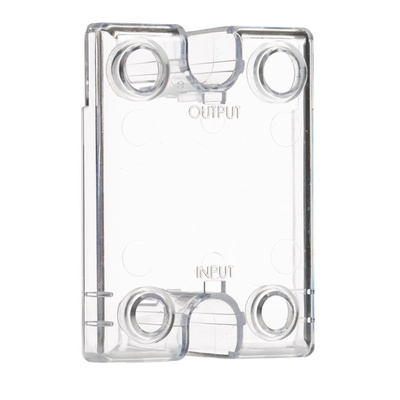

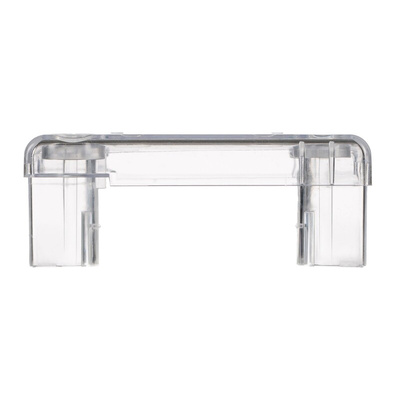

Sensata | Crydom Relay Cover, For Single-Phase and Three-Phase SSRs, PC Material - KS101

Need a complete protection solution for your solid-state relay? Turn to this relay cover from Sensata | Crydom. It helps to insulate your device to minimise the risk of electric shock for enhanced safety during installation and maintenance. For versatility, it's compatible with all Sensata | Crydom single-phase SSRs. Thanks to its clip-on mounting style, it's quick and easy to install without the need for specialised tools. Simply place the cover on the relay and press down to fix it in place. You'll commonly find this component used in applications such as compressors and fan systems.

Features & Benefits

• Compact dimensions of 60.1 (L) x 44.3 (W) x 23.4mm (H) for use with SSRs in tight spaces
• Broad operating temperature range of -40°C to +80°C for use in harsh environments
• Flame-retardant construction for safety in the event of a fire

What’s this relay cover made of?

This relay cover is made of a robust PC material that provides good rigidity, impact resistance and dielectric strength. This means you can rest assured it’s durable enough to withstand use in heavy-duty environments.

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU
