AMS22S5A1BHBFL336, Bourns Incremental Incremental Encoder, Analogue Signal, Solid Type, 1/8in Shaft, Энкодер

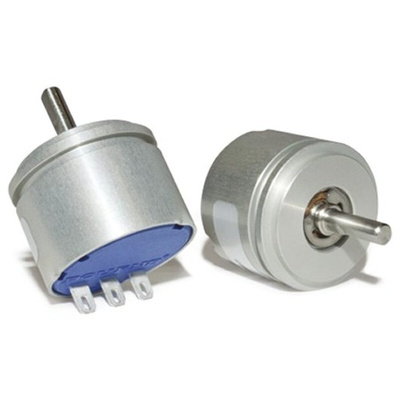

Non-Contacting Analogue Rotary Position Sensor - AMS22S Series

The Bourns® AMS22S series Non-contacting Single-turn Hall Effect sensor is designed to meet the specifications for heavy-duty applications which require a long cycle life and high reliability.

The Bourns® AMS22S sensor is a highly versatile and accurate device with the following features:-

Extremely low mechanical torque
Servo mount configuration
12 bit resolution
Programmable electrical angle from ten to 360 degrees
Factory programmable zero position
Highly resistant to vibration and shock
Highly resistant to fluid or dust ingress
Highly repeatable
Recommended input voltage = 5V ±10%.
Standard independent linearity = ±0.5%
Minimum recommended load resistance = 10k ohms
Operating temperature range = -40°C to +125°C
rotational life = up to 50 million cycles

Rotary Position Sensor

Datasheet - AMS22S Series
