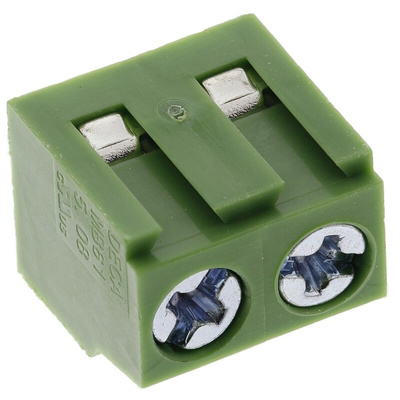

RS PRO PCB Terminal Block, 2-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 5.08 mm Pitch, 2 Way PCB Terminal Strip

Need a terminal block to connect wires securely on your PCB (printed circuit board)? This strip from RS PRO is right for the job. It features two pins with a pitch distance of 5.08 mm, so it's the ideal solution for common industrial systems like telecom equipment, medical devices and processors.
This terminal strip features screw-type termination, so it's easy to connect and you won't need any special tools for the job. It can accommodate a large range of wire sizes between 14 and 26 AWG (American Wire Gauge), so it's a versatile choice. The housing is made from Nylon 66 which is strong and has good abrasion resistance, making this unit ideal for industrial settings.
The terminal strip is rated UL-94-V-0 by Underwriters Laboratory for fire safety, so it stops any flame combustion within 50 seconds in case of accidental fire. As it's part of the RS PRO range, the unit has been tested for quality and durability.

Features and Benefits

• Straight body orientation
• Green colour
• Current rating of 16 A
• Dimensions of 10 (depth) x 10.16 (length) x 8.1 (width) mm
• Female gender
• Polyamide material
• Through-hole mounting type
• Two contacts
• One row
• Pitch of 5.08 mm
• Screw termination method
• PCB terminal block type
• Voltage rating of 300 V

Dimensional Drawing

RS Pro Datasheet
