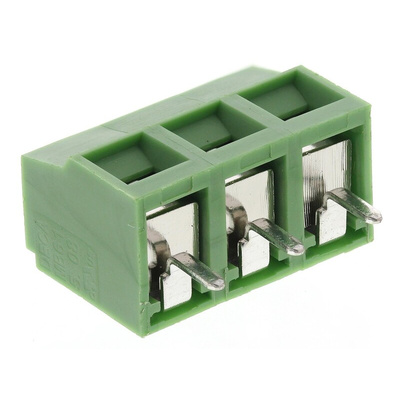

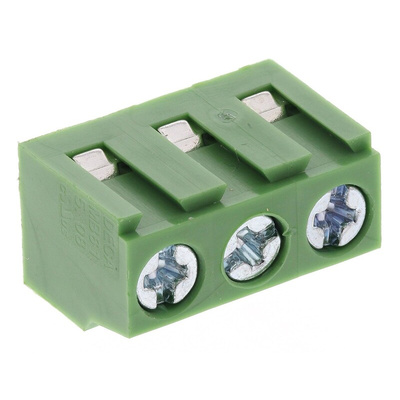

RS PRO PCB Terminal Block, 3-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 3-pin PCB Terminal Strip, 5.08 mm Pitch

If you need a secure way to connect wires on your PCB (printed circuit board), choose this RS PRO terminal strip. It has three pins with a 5.08 mm pitch distance, making it suitable for common industrial systems such as processors, medical devices and telecommunications equipment.


The screw-type termination makes it simple to connect without the need for specialised tools. It's a versatile choice as it can support a wide range of wire sizes between 14 and 26 AWG (American Wire Gauge). The polyamide material is tough and abrasion-resistant, making this strip a good choice for industrial use.


As part of the RS PRO range, this product has been tested for quality and reliability. It has a fire safety rating of UL-94-V-0 from Underwriters' Laboratories, meaning it will stop flame combustion within 50 seconds in the event of a fire.

Features and Benefits

• Straight body orientation


• Green colour


• Current rating of 16 A


• Dimensions of 15.24 (length) x 8.1 (width) x 10 mm (depth)


• Female gender


• Polyamide material


• Through-hole mounting type


• Three contacts


• One row


• Pitch of 5.08 mm


• Screw termination method


• PCB terminal block type


• Voltage rating of 300 V
