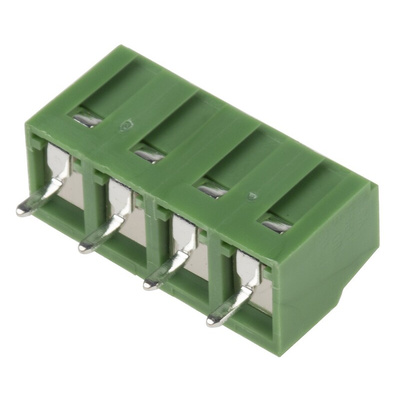

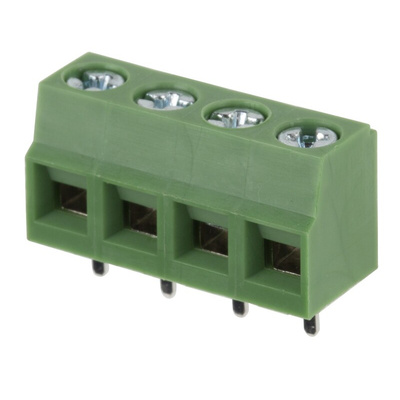

RS PRO PCB Terminal Block, 4-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 4-pin PCB Terminal Strip, 5.08 mm Pitch

Use this RS PRO terminal strip to safely connect wires on your PCB (printed circuit board). It has four pins with a pitch distance of 5.08 mm, making it compatible with common industrial systems such as processors, telecom equipment and medical devices.


This terminal strip has screw-type termination, which makes it simple to attach and eliminates the need for specialised tools. It's a versatile choice as it can support a wide range of wire gauges between 14 and 26 AWG (American Wire Gauge). The housing is comprised of a durable and abrasion-resistant polyamide material that's suitable for use in industrial environments.


The product has been tested to ensure durability and quality. Its UL-94-V-0 fire safety rating from Underwriters' Laboratories means it will stop flame combustion within 50 seconds if a fire occurs.

Features and Benefits

• Straight body orientation


• Green colour


• Current rating of 16 A


• Dimensions of 20.32 (length) x 8.1 (width) x 10 mm (depth)


• Female gender


• Polyamide material


• Through-hole mounting type


• Four contacts


• One row


• Pitch of 5.08 mm


• Screw termination method


• PCB terminal block type


• Voltage rating of 300 V
