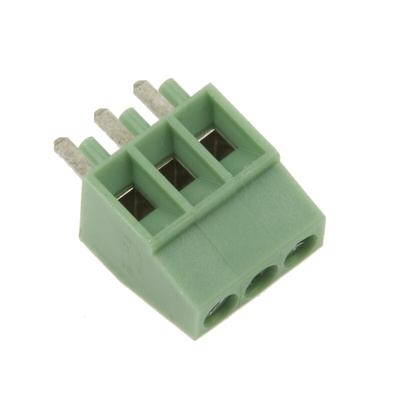

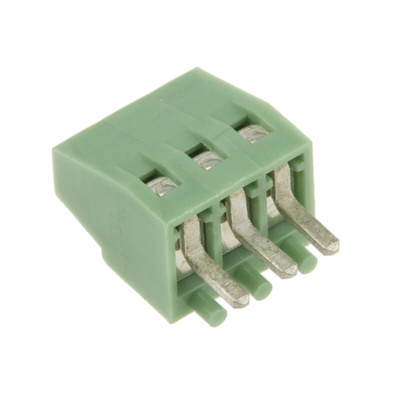

RS PRO PCB Terminal Block, 3-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2.54mm Pitch, 3-Way PCB Terminal Strip

Link wires quickly and efficiently across printed circuit boards with this 3-way PCB (printed circuit board) terminal strip. This modular, insulated device can be mounted directly onto PCBs.

The block features a method of screw-cage clamp termination that's easy to use. This means you just tighten a screw and the connection is secured. An electronics industry standard connection, this makes way for reliable connections with a range of differently sized devices. It features a straight body orientation and a pitch of 2.54 mm. With straightforward through-hole mounting, this PCB terminal strip is a highly versatile component.

The green polyamide used for the housing of the strip is certified UL94 V-0, so it has a good level of flame resistance. The strip is ideal for setting up circuit boards in a variety of applications, from everyday electronics devices to complex industrial equipment.

Features and Benefits

• Made of polyamide, in green
• Dimensions of 7.62 (L) x 6.2 mm (D)
• Pitch of 2.54 mm
• Three contacts
• Single row
• Through hole mounting
• Female
• Straight body orientation
• Screw type termination method
• Current rating of 6 A
• Voltage rating of 125 V
• Operating temperature range of -40°C and +105°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
