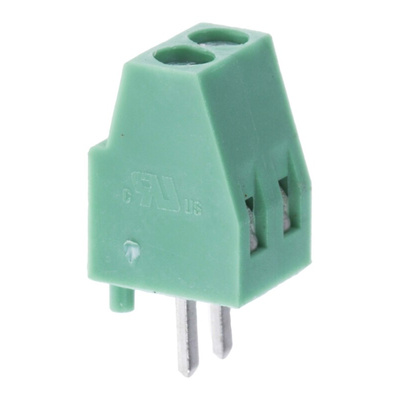

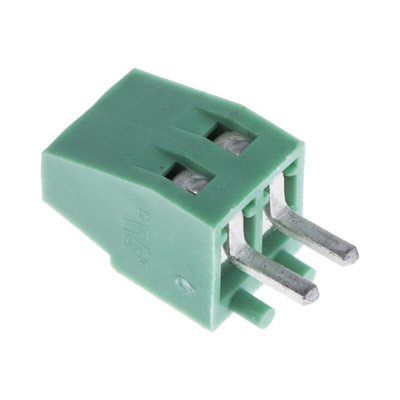

RS PRO PCB Terminal Block, 2-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2.54mm Pitch, 2-Way PCB Terminal Strip

Link wires quickly and efficiently across separate PCBs with this 2-way PCB (printed circuit board) terminal strip. This modular, insulated device can be directly mounted on your PCB.

The block features a handy screw-cage clamp termination method, allowing connections to be easily fixed just by tightening a screw. An electronics industry standard connection, this allows for reliable connections with a variety of differently sized devices. It has a straight body orientation and a pitch of 2.54 mm. With straightforward through-hole mounting, this PCB terminal strip is a highly versatile component. It operates between -40°C and +105°C.

With a good level of flame resistance, the green polyamide material used for the housing of each strip is certified UL94 V-0. The strip is well-suited for setting up circuit boards in anything from everyday electronics devices to industrial equipment.

Features and Benefits

• Made of polyamide, in green
• Dimensions of 5.08 mm (L) x 6.2 mm (D)
• Pitch of 2.54 mm
• 2 contacts
• Single row
• Through hole mounting
• Female
• Straight body orientation
• Screw type termination method
• Current rating of 6 A
• Voltage rating of 125 V

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Standards

EN61340, UL 94 V-0
