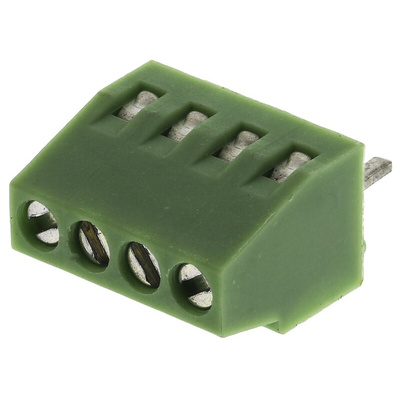

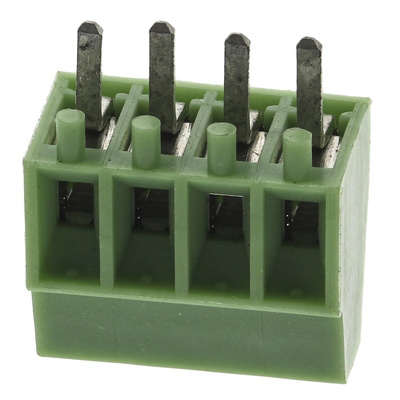

RS PRO PCB Terminal Block, 4-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2.54 mm Pitch, 4-Way PCB Terminal Strip

This 4-way PCB (printed circuit board) terminal strip is used to quickly and efficiently link wires across separate PCBs. It's a modular, insulated device and can be directly mounted on the PCB.

The block has a screw-cage clamp termination method, allowing connections to be secured easily by the tightening of a screw. This is an electronics industry standard connection and allows for reliable connections with a variety of differently sized devices. With simple through-hole mounting and a wide operating temperature range (between -40°C and +105°C), this PCB terminal strip is a highly versatile component. It has a straight body orientation and a pitch of 2.54 mm.

The green polyamide material used for the housing of the strips is certified UL94 V-0, indicating a good level of flame resistance. The PCB terminal strip is suitable for setting up circuit boards in anything from everyday electronics devices to industrial equipment.

Features and Benefits

• Made of polyamide, in green
• Dimensions of 10.16 mm x 6.2 mm x 5.54 mm
• Pitch of 2.54 mm
• 4 contacts
• Single row
• Through hole mounting
• Female
• Straight body orientation
• Screw type termination method
• Current rating of 6 A
• Voltage rating of 125 V
• Operating temperature range of -40°C and +105°C
