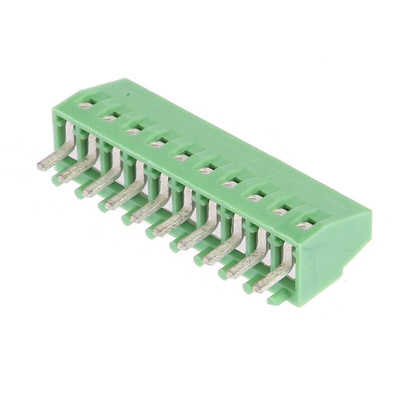

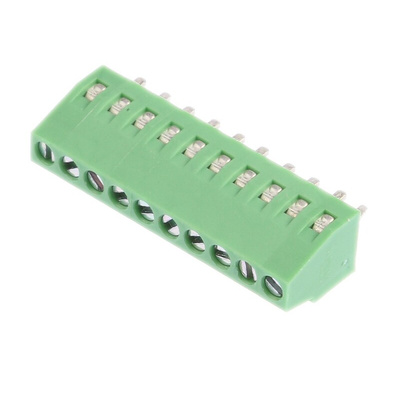

RS PRO PCB Terminal Block, 10-Contact, 2.54mm Pitch, Through Hole Mount, 1-Row, Screw Termination

RS PRO 2.54mm Pitch, 10-Way PCB Terminal Strip

Quickly and efficiently connect wires across printed circuit boards with this 10-way PCB terminal strip. This insulated, modular device can be quickly and simply mounted directly onto the board.

The block features a handy screw-cage clamp termination method, which means that securing connections is as easy as tightening a screw. An electronics industry standard connection, this offers dependable connections with differently sized devices. It also features a straight body orientation and a pitch of 2.54 mm. Finally, this PCB terminal strip is a highly versatile component thanks to its simple through-hole mounting.

Indicating a good level of flame resistance, the green polyamide used for the housing of the strips is certified UL94 V-0. From everyday electronics devices to industrial equipment, the strip is ideal for setting up circuit boards in a variety of applications.

Features and Benefits

• Made of polyamide, in green
• Dimensions of 24.5 mm (L) x 6.2 mm (D)
• Pitch of 2.54 mm
• 10 contacts
• Single row
• Through-hole mounting
• Female
• Straight body orientation
• Screw type termination method
• Current rating of 6 A
• Voltage rating of 125 V
