0218/12-101, Busch Jaeger - ABB Data Outlet Frame Thermoplastic RJ45 Data Insert

RJ45 Data-Connection Box Flush Mounted Inserts

RJ45 Cat 6a ISO shielded data connection inserts

790-3284 = single outlet RJ45

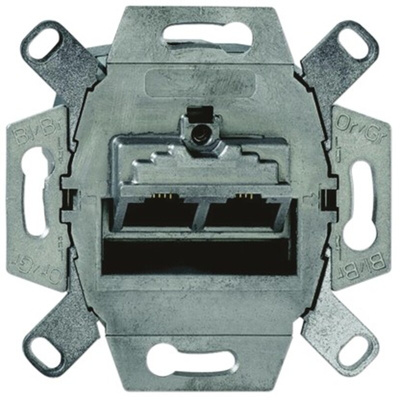

790-3293 = twin outlet RJ45

Flush mounted
Downward facing RJ45 outlet and LSA self-cutting clamps
RJ45 terminals for networks according to Cat6A, Class EA (10 GBits/s / 500MHz (equates to cat 6a, Class EA according to ISO/IEC 11801:2011-06)
Terminal marking A and B according to TIA/EIA-568-B.2
Typ according to EN 60 603-7-51:2011-01
Shelding according to DIN EN 55022, Class B
Up to 500MHz on all pairs of wires
Suitable for 10 Gigabit ethernet
Suitable for PoE+ according to IEEE 802.3
Flex cable entries from all sides without buckles
Earthing of housing via 6.3 mm blade terminal at read of the unit is possible
Re-embedded proofed
Suitable for mix and match operation
Suitable for RJ11, RJ12 and RJ45
For data cableswith a diameter of 6 to 10 mm
for wires of AWG 24-22
For trunk systems, flush mounted wall boxes and underfloor systems
Without claws
Mounting depth 31 mm

For 1803 series cover plates, please see: 790-3142 (single) or 790-3145 (twin)

Data Communication

Data-connection box, 2 x outlets, 8/8-pole Data Sheet
