ITOOLS/NONE/USB/, Eurotherm USB Cable, 2m, Кабель

Eurotherm USB CPI Clip Cable

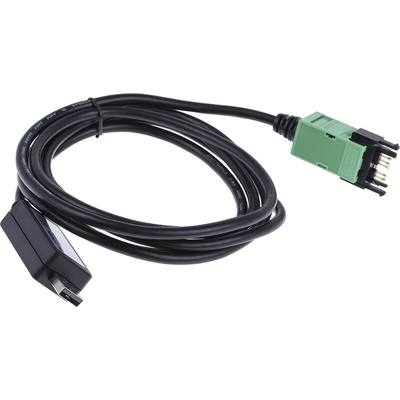

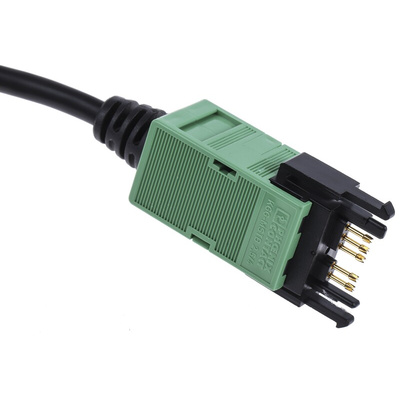

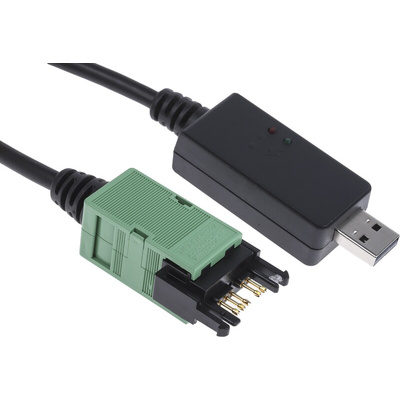

The Eurotherm USB CPI clip cable has a length of 2m. The USB connection is made with a male Type A plug and used to supply power to the instrument. The CPI clip allows configuration and back up of Eurotherm 3000, piccolo and nanodac series of panel mounted instruments and mini8 rack-mounted controller. The cable connects to the instrument by a 5 pin configuration clip with a custom plastic insert and a shell. It is designed to clip into the side of a controller or indicator.
Note:
The software is required for running and setup. This can be downloaded from the link within the datasheet, listed under the technical reference" on the product page.

Features and Benefits

Convenient and quick to connect
Powers the instrument directly from the USB connection, without needing a separate mains supply
Does not require the instrument to be fitted into a sleeve to backup or restore configurations
Green LED for USB port and red LED for communication

Applications

Automotive industry
Machine shops

Certifications

EN61131-2
EN61326
CE certified

USB CPI Clip Software User Manual
